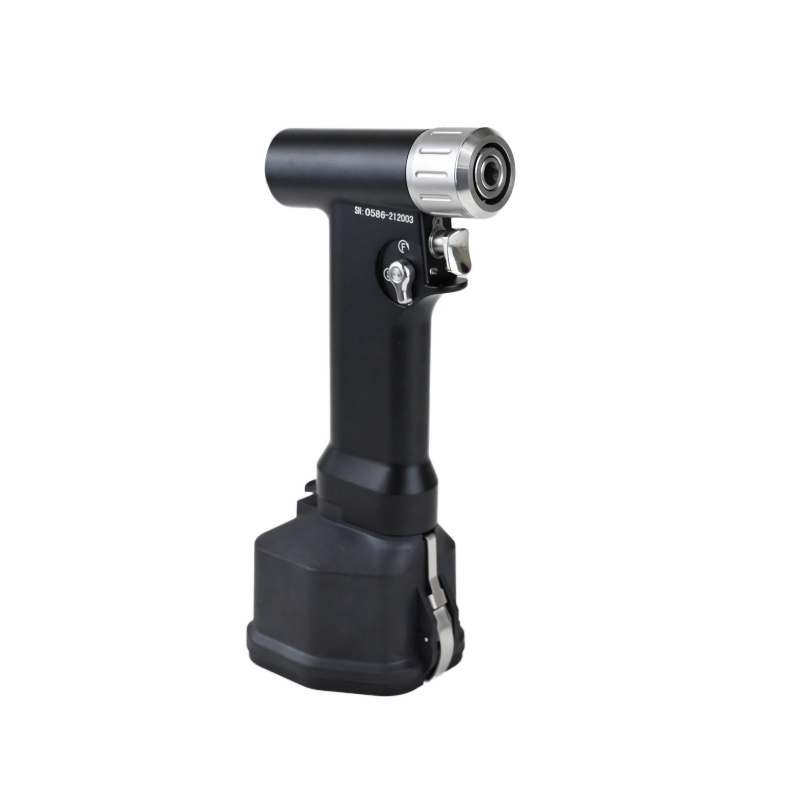

Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill
Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill
Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill
Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill
Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill
1 / 5
Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill
Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill
Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill
Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill
Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill

Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill

Send Inquiry

Product Description

E100 Multifunction Drill
Mini Multi Function Bone Drill Machine
Features
  • Speed Range (Key Chuck Attachment): 0-1200rpm
  • Torque (Key Chuck Attachment): 3.5N-m
  • Speed Range (Reaming Attachment): 0-400rpm
  • Torque (Reaming Attachment): 10N-m
  • Application: Animal Orthopedic Multifunctional Stryker Surgical Drill Orthopedic Power Drill

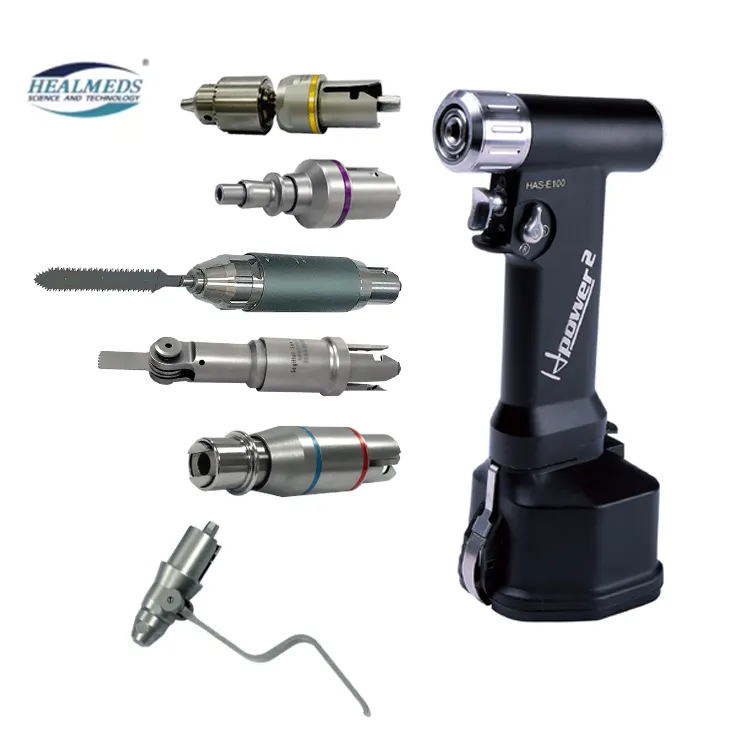

E100 Multifunction Drill Features
Details

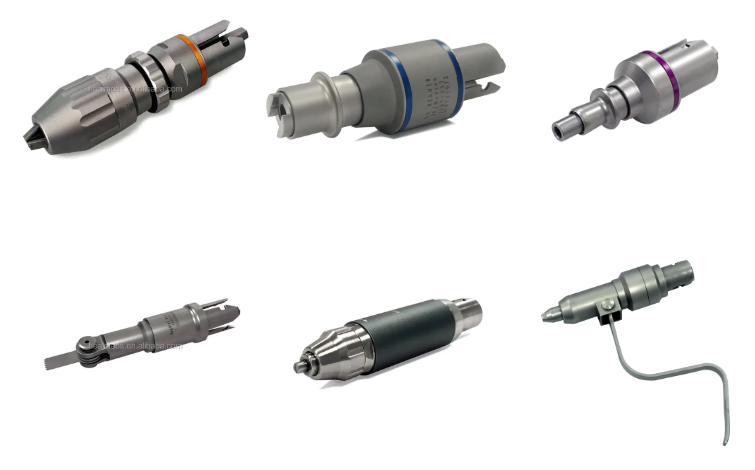

E100 Drill Detail Overview

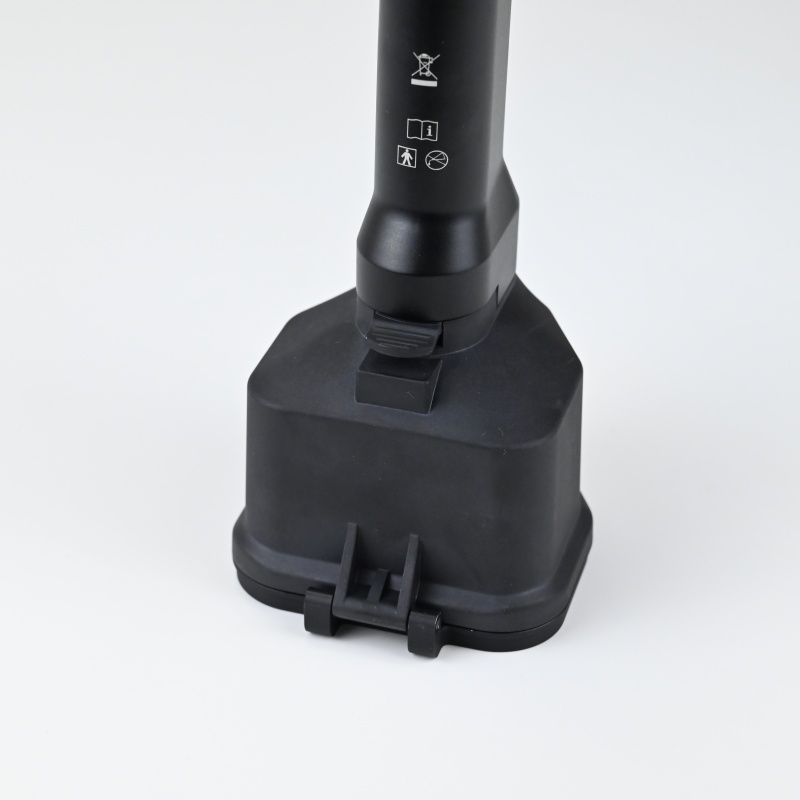

E100 Drill Components View 1

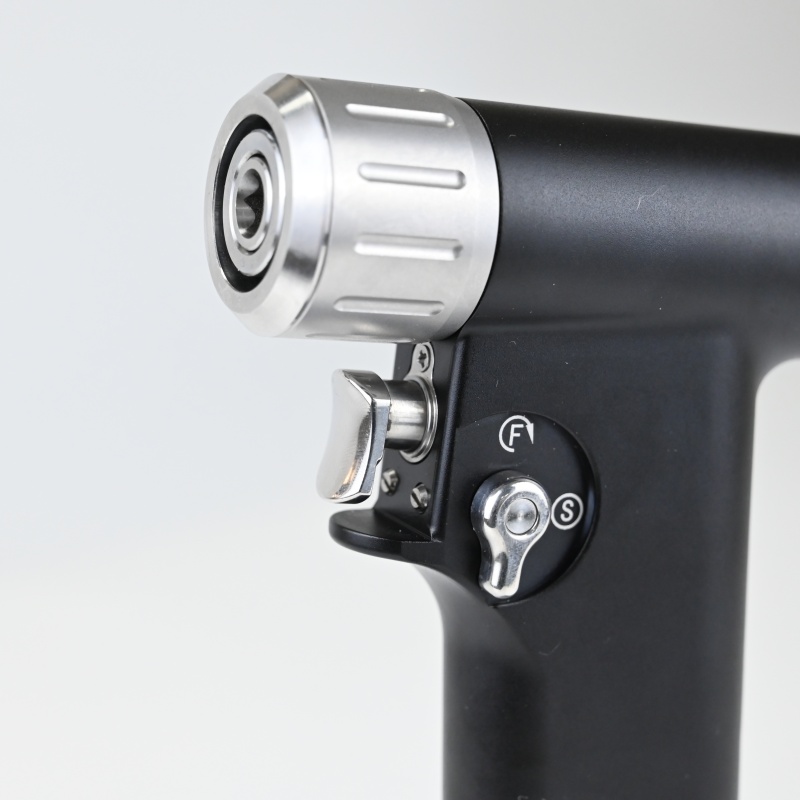

E100 Drill Components View 2

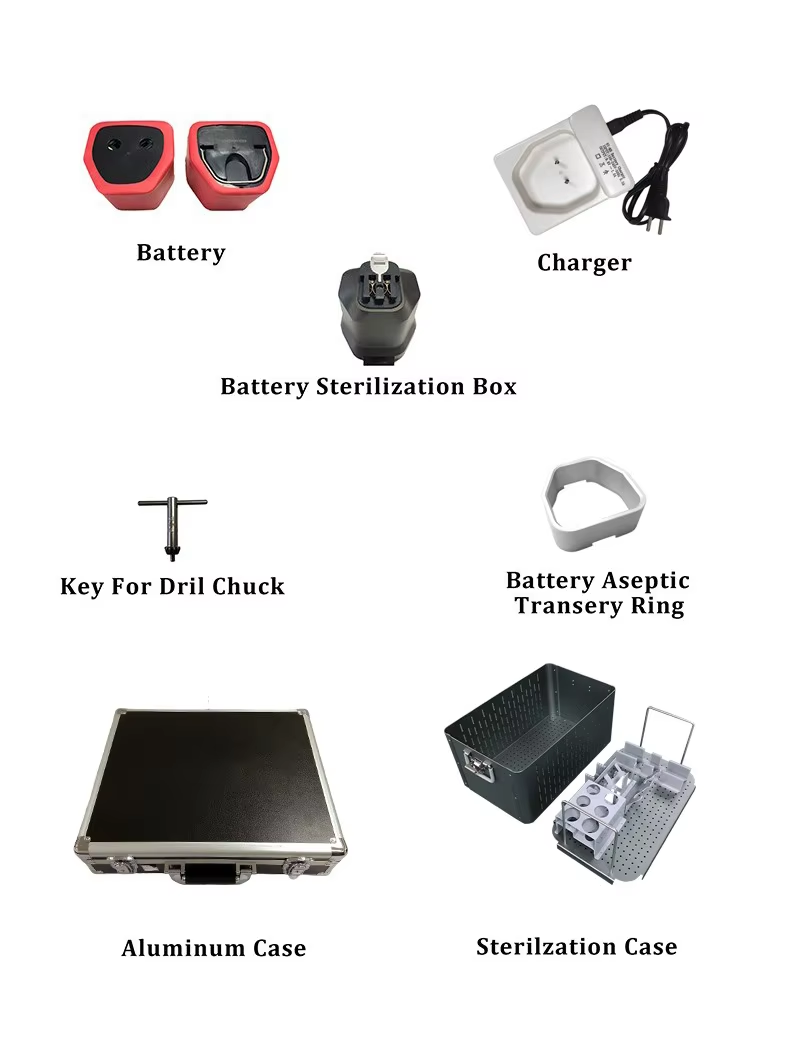

E100 System Configuration
Specification
Item Value

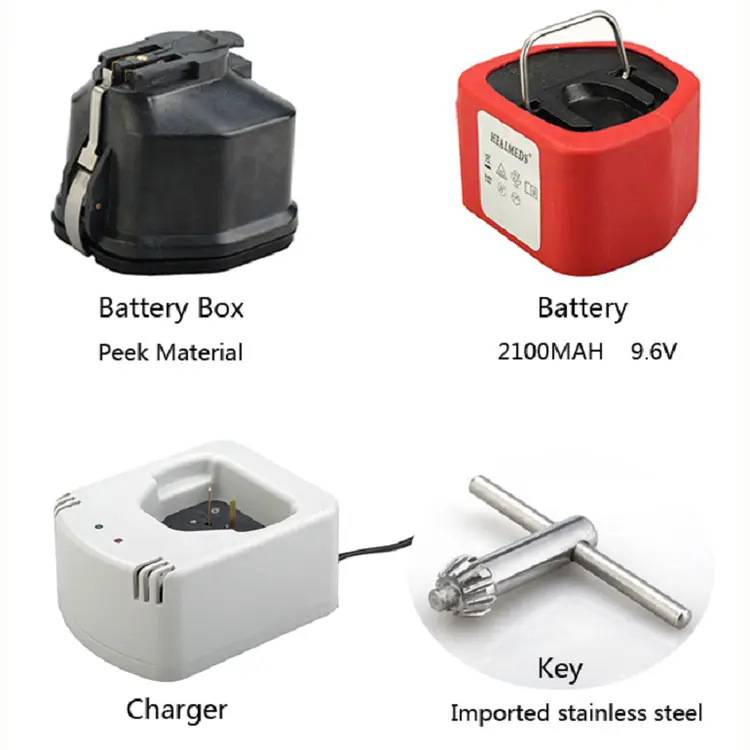

Multi-Function Handpiece Equipped with brushless DC cannulated motor imported from USA
Battery Ni-MH with longer service-life, High capacity: 2100MAH, Voltage: 9.6V
Battery Box PEEK material: sterilized more than 3000 times
Charger More convenient design to guarantee the battery life
Transfer Shield Imported stainless steel 304
Key Chuck Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment Speed Range 0-400rpm, Torque 10NM
K-wire Attachment 0.7-1.6mm / 1.6-4.0mm
Reciprocating Saw Frequency: 0-12000cpm
Sterilizing Box 445 * 275 * 215mm, 4.6Kg
Payment & Delivery
Payment and Delivery Process
Our Advantages
Production Advantage 1
Production Advantage 2
Quality Control Advantage
Shipping and Certificate Advantage
FAQ
FAQ Support
What surgical applications is the E100 Multifunction Drill suitable for?
The E100 system is primarily designed for animal orthopedic surgeries. It operates as a multi-functional system compatible with key chuck drilling, reaming, K-wire insertion, and reciprocating saw attachments.
What are the motor specifications of the handpiece?
The handpiece is equipped with a high-performance brushless DC cannulated motor imported directly from the USA, ensuring smooth operation and enhanced longevity.
How durable is the battery box against repeated sterilization?
The battery box is constructed from advanced PEEK material, which is highly heat-resistant and capable of undergoing sterilization processes more than 3,000 times without degrading.
What torque and speed ranges can this multi-function drill achieve?
With the Key Chuck attachment, the speed ranges from 0 to 1200 rpm with a torque of 3.5N-m. The Reaming attachment provides a speed of 0 to 400 rpm with a maximum torque of 10N-m.
What size ranges are supported by the K-wire attachment?
The K-wire attachment is designed to support wire diameters ranging from 0.7mm to 1.6mm and 1.6mm to 4.0mm, allowing for standard clinical flexibility.
Is a dedicated sterilization box included in the system package?
Yes, the system comes with a heavy-duty sterilization box measuring 445 * 275 * 215 mm and weighing 4.6 kg, designed to safely organize and sterilize all the components.
