Osteora Osteora

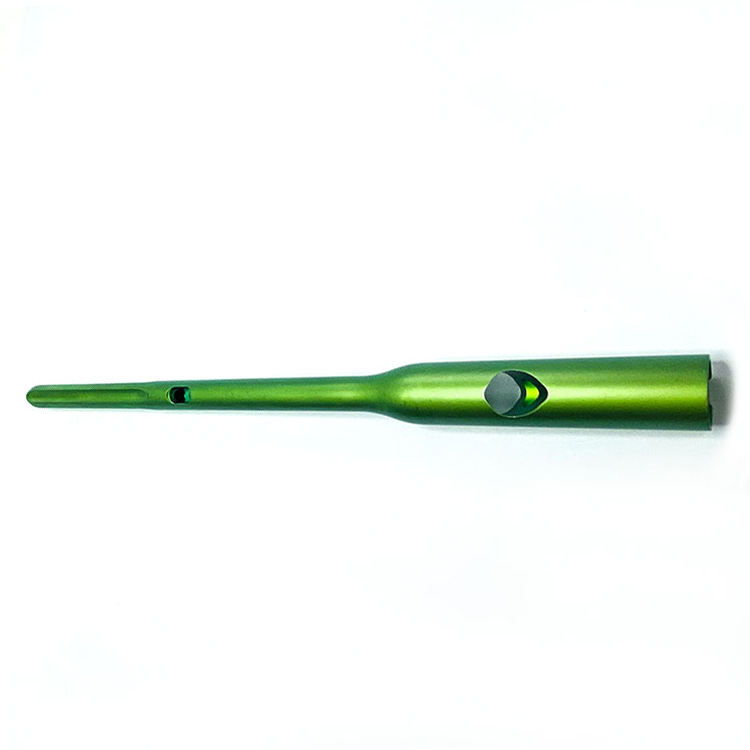

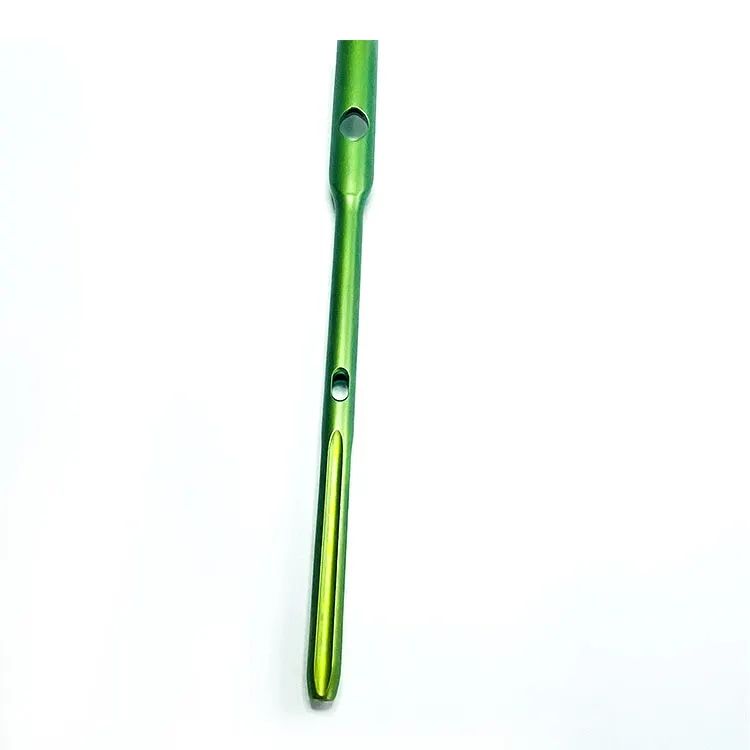

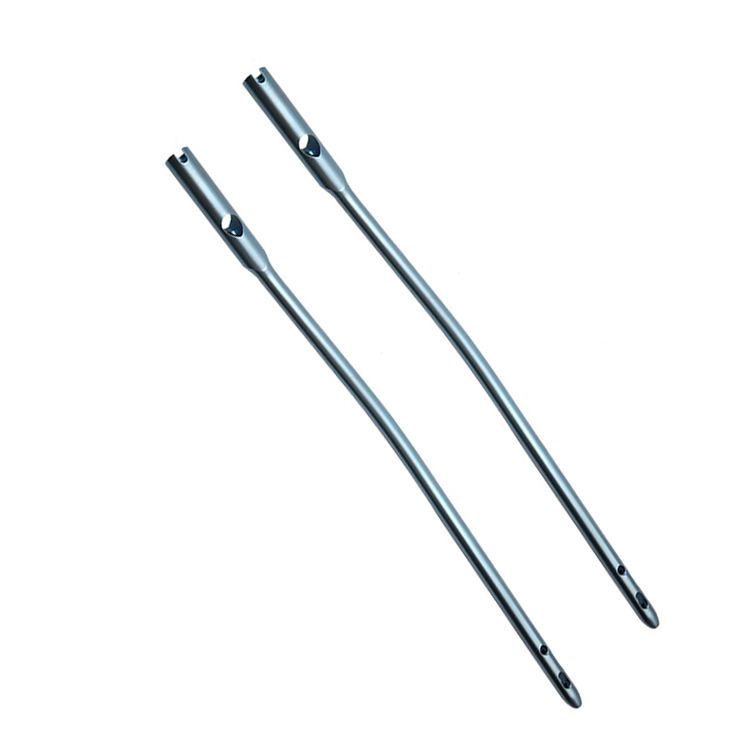

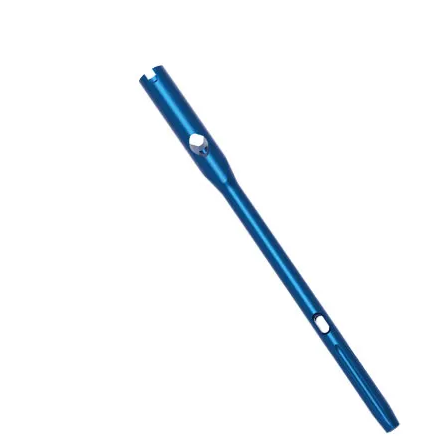

PFNA Femoral Nail Orthopedic Medical Implant for Fracture Surgery Ortopedia Pfna Nail Orthopedic Material

Product Description

Intramedullary Nail Systems Banner
Products Description

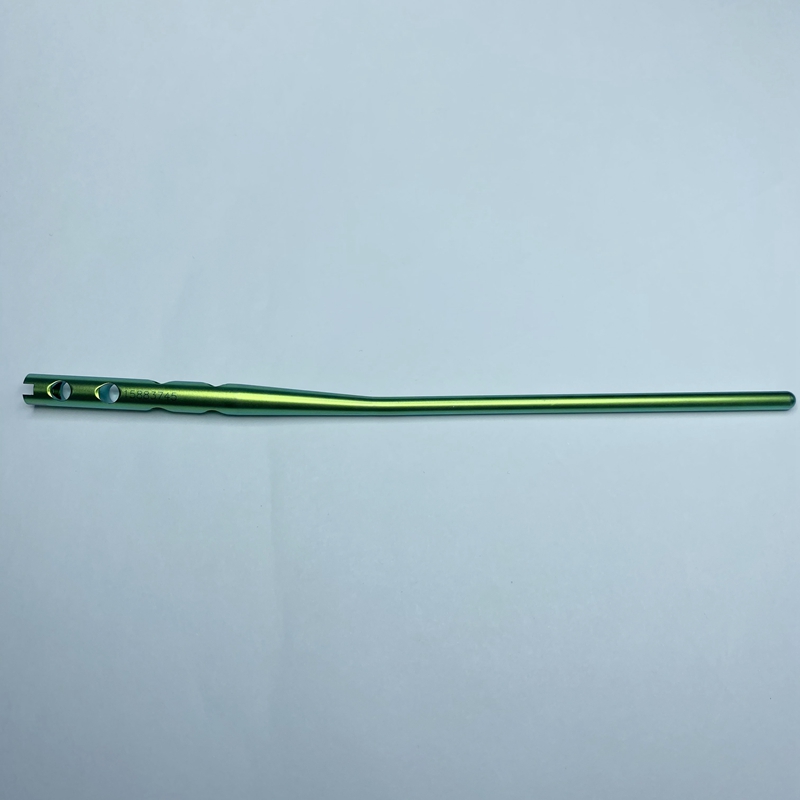

Fibular Nail Mini Nail Product
Product name Model Specification Material Code
Fibular Nail Mini nail SWX-IIIS 3.0×145 Titanium Alloy 15883145
Intramedullary Nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
All models are available
High Quality Raw Materials
Advanced Facilities & Fine Procedures
High Productivity & Fast Delivery
Leading Level R & D Department
Experienced Marketing & Design Team
Accept OEM & ODM
Excellent After-sales Service
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160
Our Advantages
Our Advantages Overview
1.0m Radian Radius Design
1. 1.0m radian radius: The length is consistent with the anatomy of the FEMORAL medullary cavity.
Screw-in-screw design
2. Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Nail Dimensions
3. Full Size Options: Short nail: φ 8.0/9.5mm, length 160mm. Long nail: φ 7.0/8.5mm, length 180-315mm. All nails have left/right type, titanium alloy.
Details Images
Proximal fixation detail
Proximal fixation
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Distal fixation detail
Distal fixation
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Elastic Nail detail
Elastic Nail
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3.0mm / 6-8 years old; 3.5mm / 9-11 years old; 4.0mm / 12-14 years old.
Compression design detail
Compression
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
TFNA System detail
TFNA System
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
Detailed Intramedullary Nail System
Why Choose Us
Why Choose Our Orthopedic Implants
Frequently Asked Questions
Q1: Would you please give some information on shipping mode and charges?
A: Normally we send through express couriers like DHL, FEDEX, UPS, TNT, etc., or by post upon special request from clients.
Q2: Do you have ISO 9001, ISO 13485, and CE approvals?
A: Yes, our products are manufactured under strict international standards and hold corresponding ISO 9001, ISO 13485, and CE quality certifications.
Q3: What is the minimum order that we can place? Do you provide free samples?
A: We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning in order to test our products in the market. We can offer free samples, but do not pay the cost of freight.
Q4: Can I buy products not shown but similar to your catalogue?
A: Of course you can, just send us pictures or samples. Please note this may take slightly longer for delivery.
Q5: Do you have stock for listed products, or are they newly produced? What are your terms of payment?
A: Generally, we maintain stock for listed products which are produced monthly, depending on sales demand. Please consult our sales representative for accurate inventory details. Payment <= 800 USD, 100% in advance. Payment > 800 USD, 30% T/T in advance, balance before shipment. Payment methods include L/C, T/T, Western Union, and PayPal.
Q6: What materials are used for your orthopedic implants?
A: Our implants, including intramedullary nails, locking screws, and blades, are mainly fabricated from medical-grade Titanium Alloy to ensure biocompatibility and high strength.
