Osteora
Osteora
| Product name | Model | Material | Specification | Code |
|---|---|---|---|---|
| Humeral nail Intramedullary Nail | SHG-IK | Titanium Alloy | 8 | 15728160 |
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
The length is designed to be fully consistent with the anatomy of the femoral medullary cavity for optimized placement.
To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.

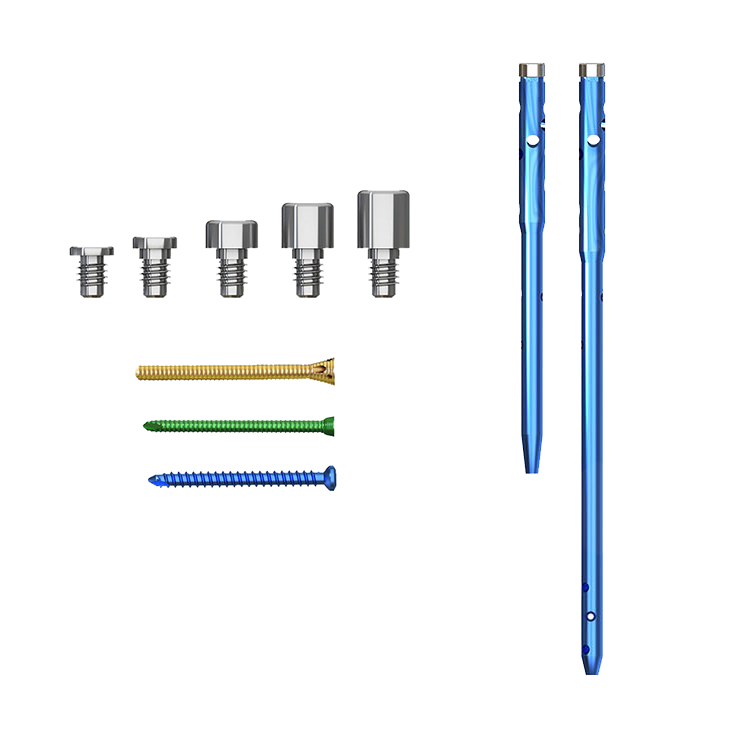

Short nail: diameter of 8.0 / 9.5mm, length of 160mm.
Long nail: diameter of 7.0 / 8.5mm, length of 180-315mm (15mm interval).

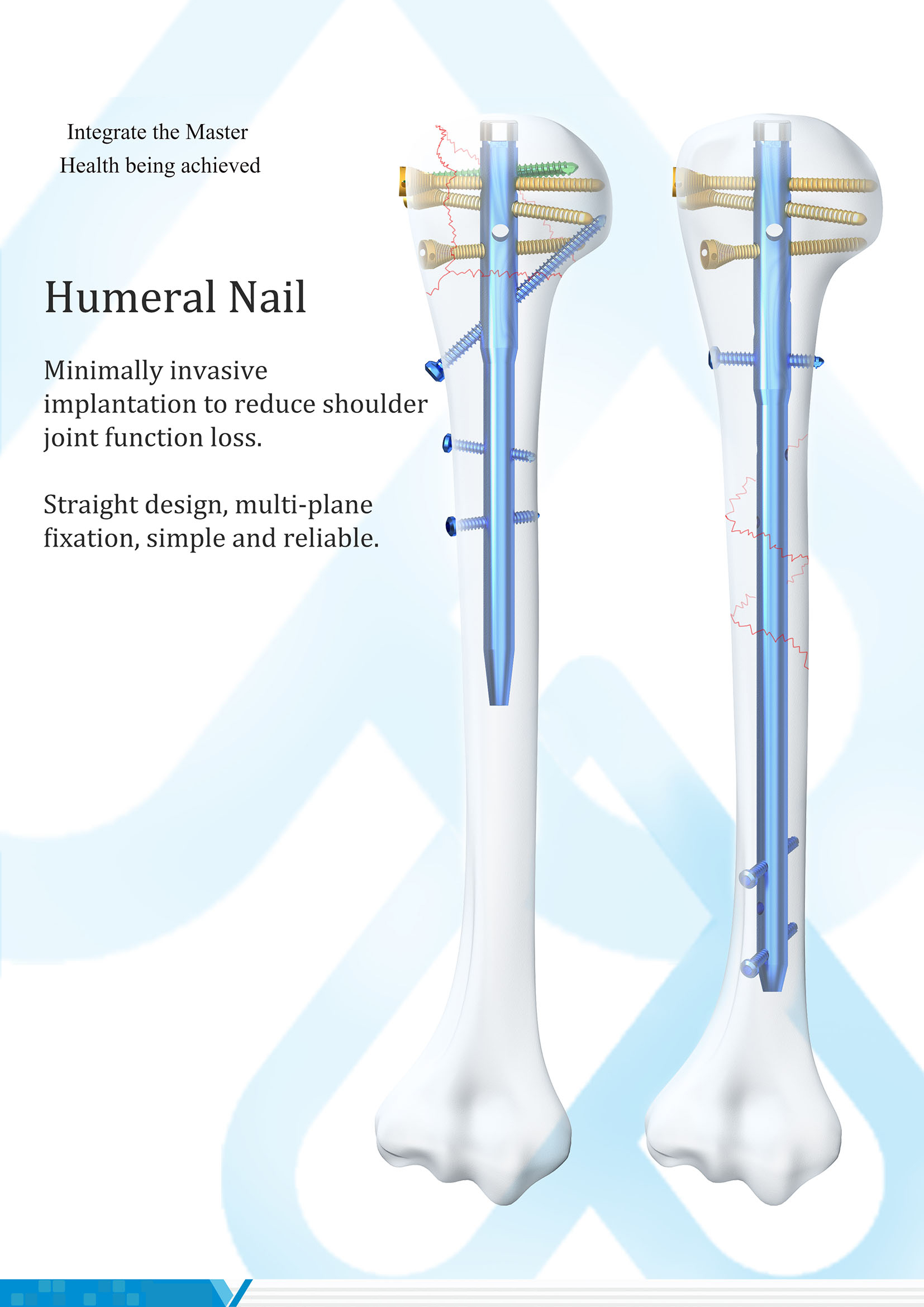

All nails have left and right type, made of titanium alloy material. The diameter options are suitable for all applications, promoting simple operation and minimally invasive implantation.

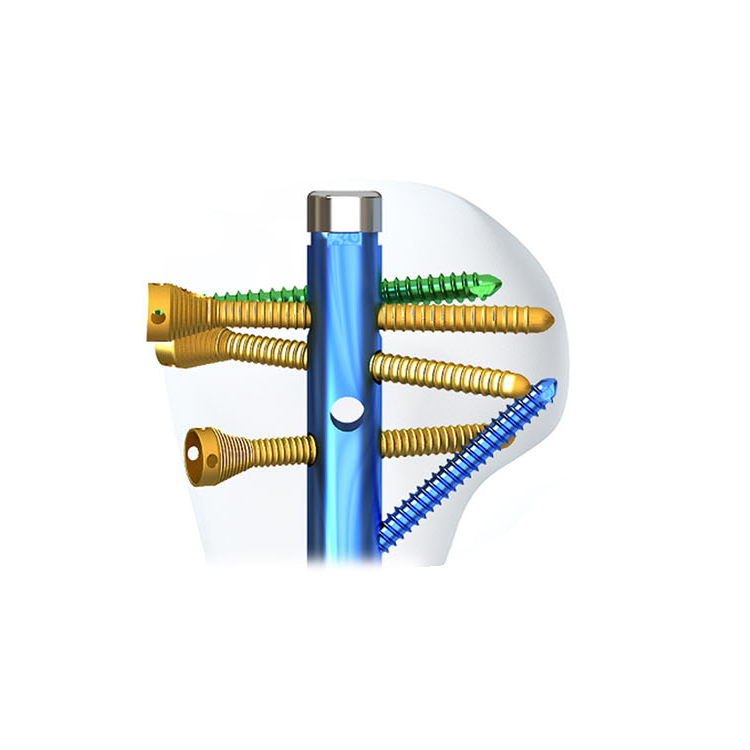

Multi-plane and Multi-locking screw fixation options provide multiple alternatives during operation to achieve optimal fixation stability. Features a screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head locking screw design reduces the risk of excessive penetration, while the countersinking design reduces soft tissue irritation.

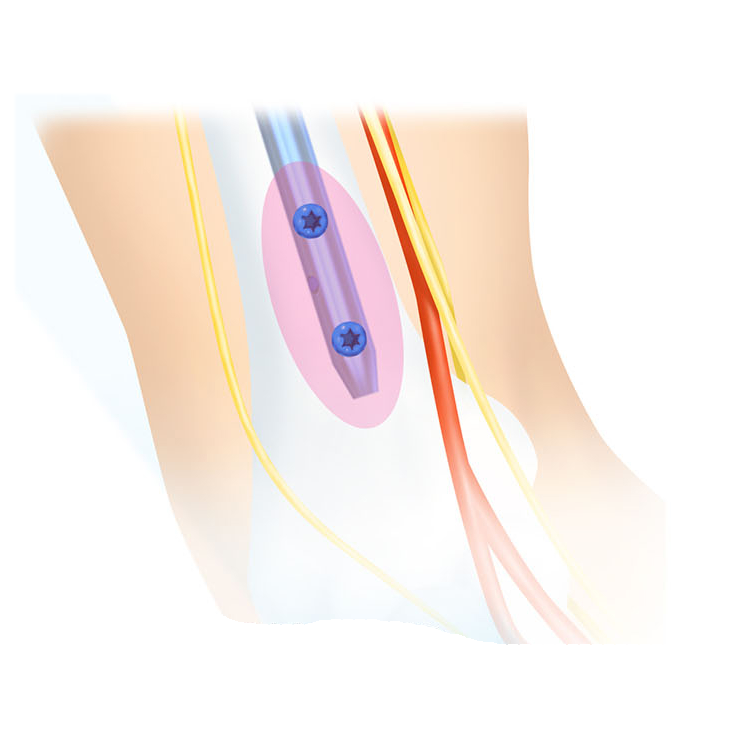

Short screw: features two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate manual operation, minimizing the occurrence of rotation and displacement of distal fractures.
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Features a self-sustaining compression mechanism, ensuring no static screw is needed to maintain compression during operation.
Compared with G3 with a radian radius of 1.5m, the distal location of TFNA with a radian radius of 1.0m in the center of the medullary cavity is twice as likely as that of the G3 system.
Normally we send shipments through couriers like DHL, FEDEX, UPS, TNT, etc., or post upon request from clients.
Yes, our medical devices are manufactured under strict compliance with ISO 9001, ISO 13485, and CE certification standards.
We expect your minimum orders to be at least US$500. However, we understand that customers may need to place smaller sample orders in the beginning to test our products in their market. We can offer free samples, but the cost of freight is not covered.
Yes, you can. Please send us reference pictures or samples, though kindly note that custom or unlisted items may require a longer time for delivery.
Generally, we maintain stock for listed products, which are replenished on a monthly production schedule. However, availability depends on current sales conditions. Please contact our representatives for accurate inventory information.
For payments less than or equal to 800 USD, we require 100% in advance. For payments greater than 800 USD, we require 30% T/T in advance, with the balance paid before shipment. We accept payment methods via L/C, T/T, Western Union, PayPal, and other major platforms.
