Geasure Titanium Alloy Mini Nail Screw 3.5 Locking Screw for Ulna Fiber Nail Interlocking Implants Interventional Materials

Product Description

Intramedullary Nail Implant
Intramedullary Nail Assembly
Intramedullary Nail Specifications
Intramedullary Nail: We offer a comprehensive selection of high-quality intramedullary nails. Crafted from premium Titanium Alloy, these medical devices are designed for easy insertion and extraction. They effectively reduce the risk of outer wall impact and inward movement of the main nail. Available in multiple diameters to suit diverse applications, facilitating simple surgical operations and minimally invasive implantation.

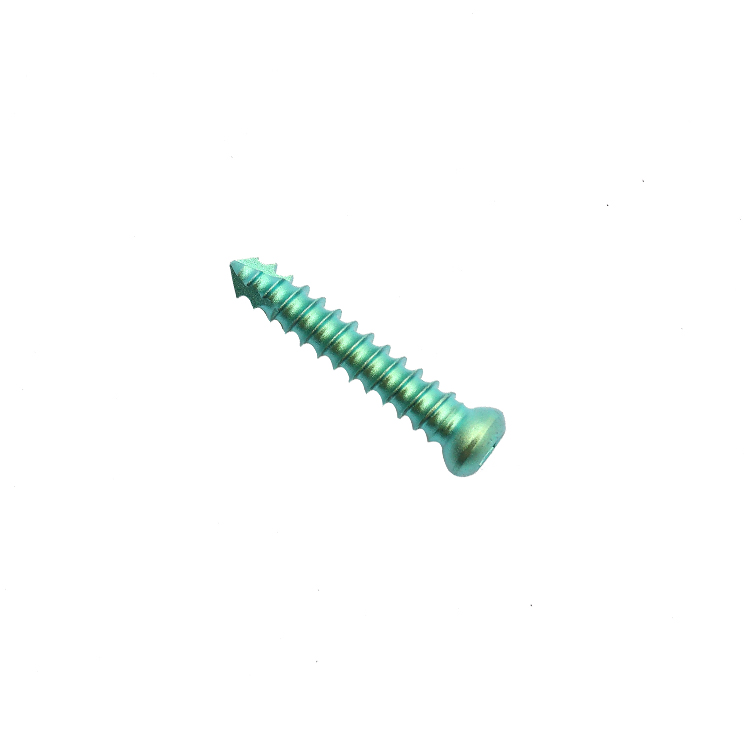

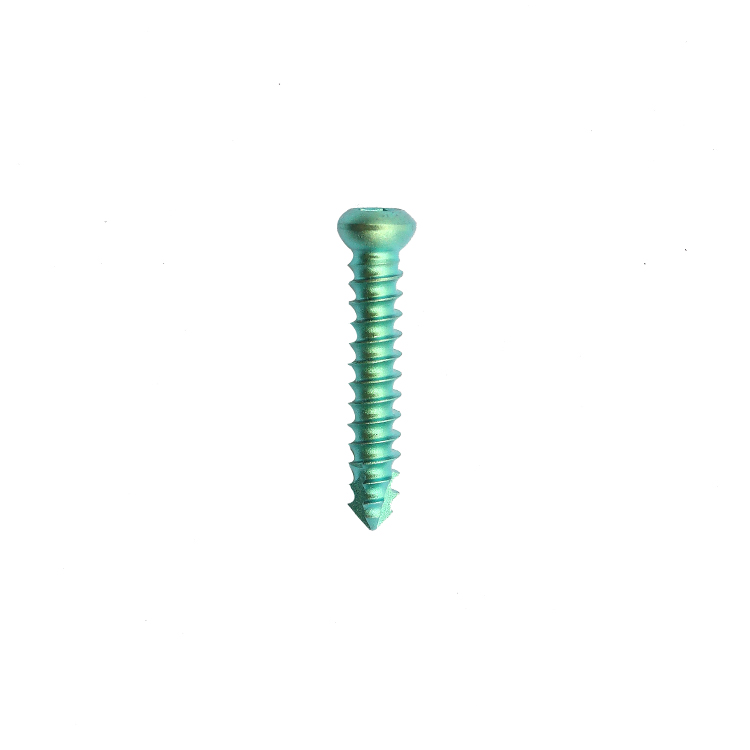

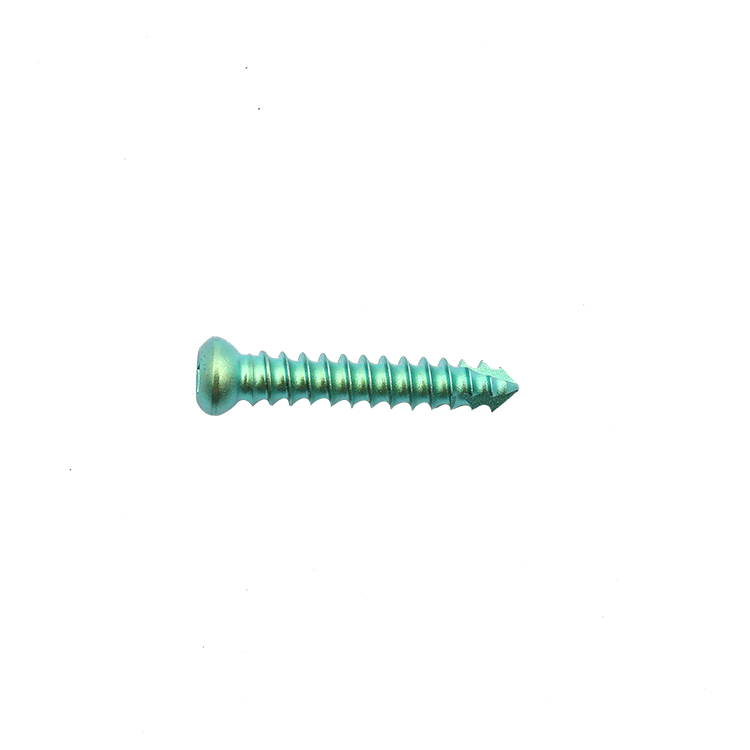

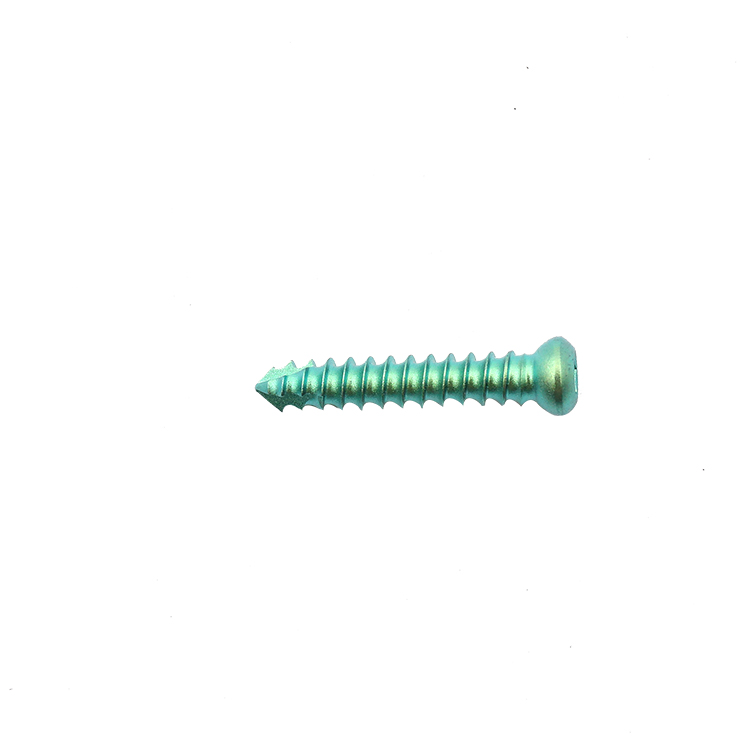

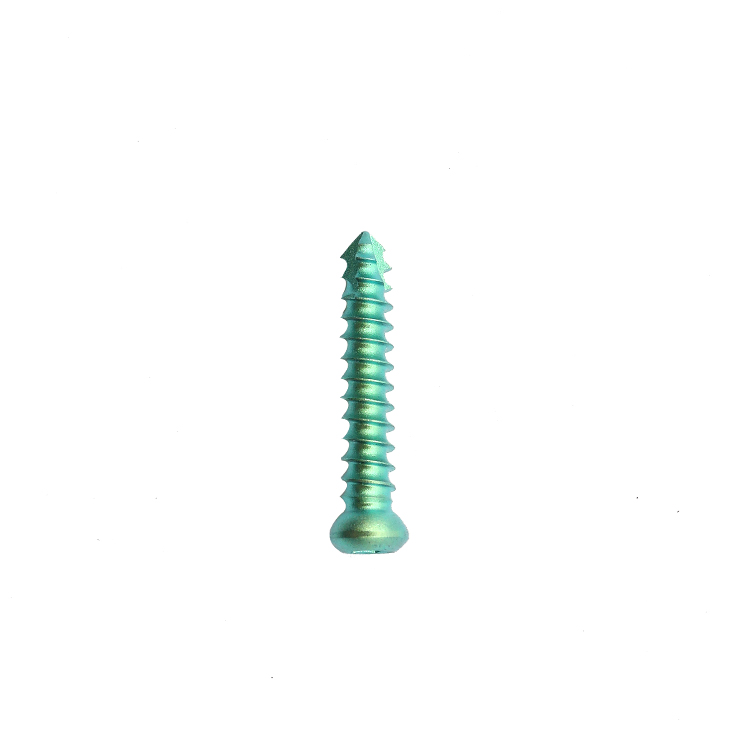

Screw Specifications
Product Name Model Material
Diameter 3.5 locking screw SWX-IS Titanium Alloy
Intramedullary Nail Catalog & Specifications
Product Name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160
Key Anatomical Features
1.0m Radian Radius Design
1.0m Radian Radius
The nail length and curvature are meticulously designed to align consistently with the natural anatomy of the femoral medullary cavity.
Screw-in-screw Mechanism
Screw-in-Screw Design
Specifically engineered to enhance fixation strength in osteoporotic bone. The blunt end design of the locking screw effectively minimizes the risk of excessive penetration.
Short and Long Nails
Anatomical Sizing Options
Short Nail: Available in diameters of 8.0mm and 9.5mm with a length of 160mm.
Long Nail: Available in diameters of 7.0mm and 8.5mm, with lengths ranging from 180mm to 315mm (in 15mm intervals).
All nails are offered in dedicated left and right anatomical configurations, made of titanium alloy for simple, minimally invasive implantation.
Product Technical Details
Proximal Fixation Options
Proximal Fixation
Provides multi-plane and multi-locking screw fixation options to achieve optimal stability. The screw-in-screw design further enhances fixation in osteoporotic patients. Featuring a blunt-headed locking screw design to minimize the risk of over-penetration, and a countersunk profile to reduce soft tissue irritation.
Distal Fixation System
Distal Fixation
Short Screw: Engineered with two locking holes on different planes.
Long Screw: Features three locking holes carefully positioned in the safe area between the median and radial nerves to avoid critical blood vessels. Two anterior-posterior locking holes simplify manual handling and minimize rotation or displacement of the distal fracture.
Elastic Nail Guidelines
Elastic Nail sizing
For optimal performance, the nail diameter should equal 30% to 40% of the narrowest transverse diameter of the medullary cavity. Recommended guidelines:
• 3.0mm: for ages 6–8 years old
• 3.5mm: for ages 9–11 years old
• 4.0mm: for ages 12–14 years old
Compression Mechanism
Compression Mechanism
Features special compression holes designed to increase stability in transverse or short oblique fractures. A self-sustaining compression mechanism eliminates the need for static screws to maintain compression intraoperatively.
TFNA System vs G3
TFNA System
Compared to G3 implants with a radian radius of 1.5m, the TFNA system's 1.0m radian radius is twice as likely to achieve optimal, centered placement within the medullary cavity at the distal location.
Orthopedic Medical Devices
Orthopedic Implants Showcase Intramedullary Nails Showcase
Production Facilities & Quality Control
Manufacturing Clean Room
Production Inspection
Testing Equipment
Frequently Asked Questions
What are the available shipping modes and estimated charges?
Shipments are typically dispatched via express couriers like DHL, FEDEX, UPS, TNT, or via postal mail based on client instructions. Shipping charges depend on order weight, dimensions, and destination country.
Do the orthopedic products carry international quality approvals?
Yes, all orthopedic implants and medical devices are manufactured under strict quality standards, conforming to international certifications such as ISO 9001, ISO 13485, and CE.
What is the minimum order value? Do you offer free product samples?
Our standard minimum order value is US$500. However, we accept smaller sample orders initially for market testing and evaluation. While free samples can be provided for standard components, the cost of freight must be covered by the customer.
Can I purchase custom products similar to those in the catalog?
Yes, custom fabrications similar to our catalog items can be manufactured. Please provide product pictures, technical drawings, or physical samples. Note that customized orders may require a longer lead time for delivery.
What are the payment terms and stock availability?
We maintain stock for most listed products, which are produced on a monthly basis. Payment terms are 100% in advance for orders under USD 800. For orders over USD 800, we require 30% T/T in advance and the balance prior to shipment. We accept payment via L/C, T/T, Western Union, and PayPal.
What grade of material is used in your intramedullary nails?
All intramedullary nails, blades, caps, and locking screws are manufactured using high-grade biocompatible Titanium Alloy, ensuring excellent mechanical strength, corrosion resistance, and patient safety.
