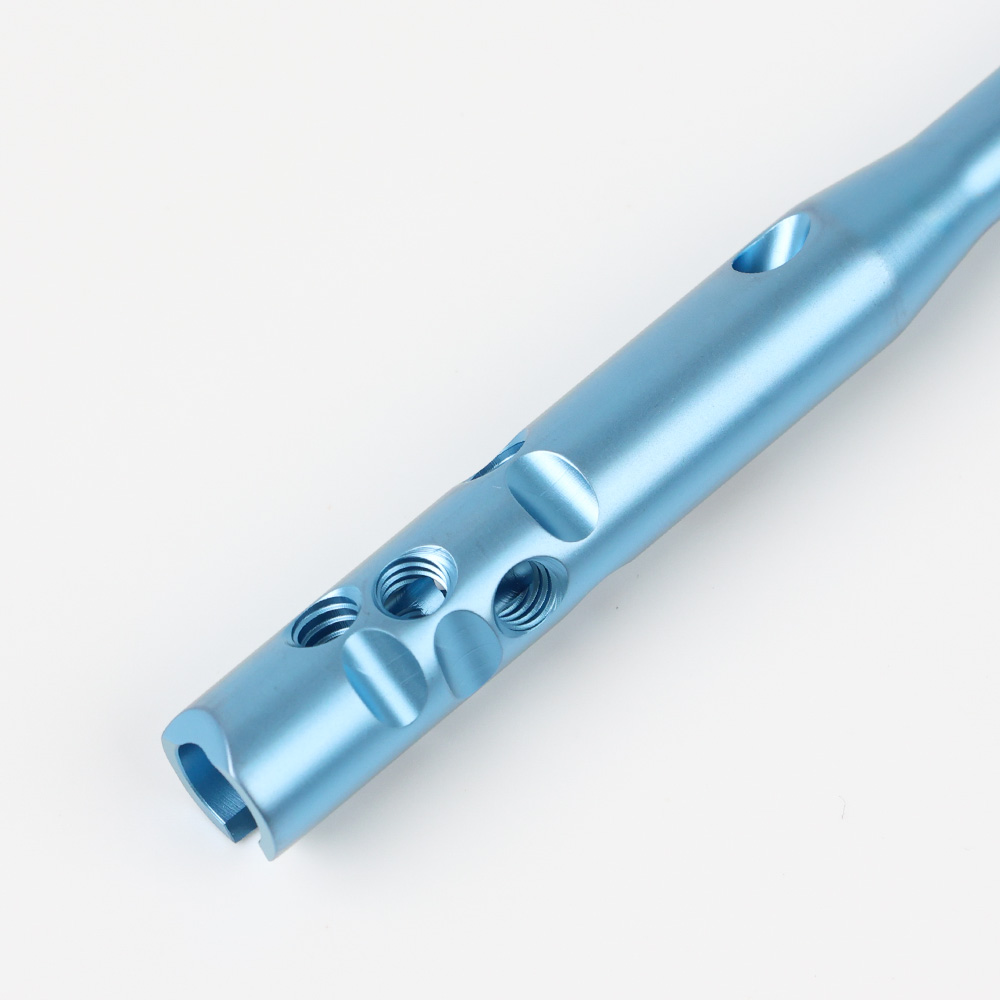

Geasure Stock Orthopedic Surgical Humeral Nail for Osteoporotic Bone Fixation Medical Orthopedic

Product Description

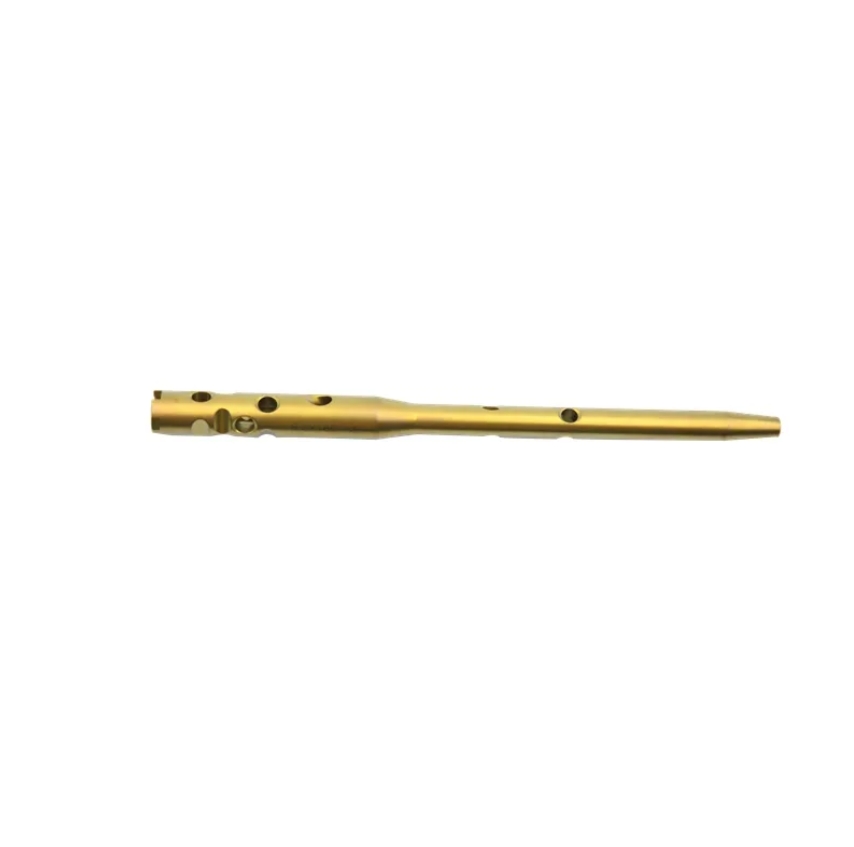

Intramedullary Nail Overview
Product Image

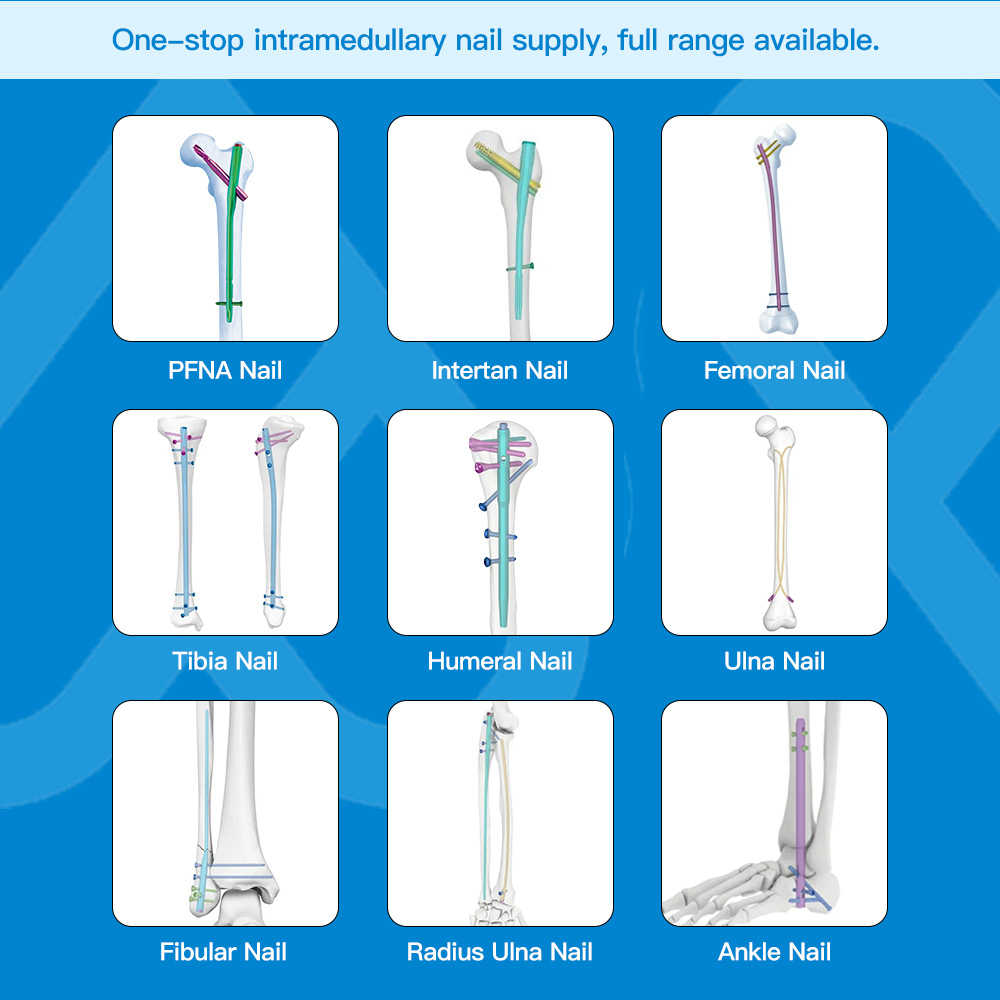

Intramedullary Nail - All kinds of high quality intramedullary nails designed for optimal patient outcomes.

  • Easy to insert and take out
  • Premium Titanium Alloy material
  • Reduced risk of outer wall impact & main nail inward movement
  • Diameters suitable for all applications
  • Simple operation & minimally invasive implantation
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160
Our Advantages
Advantage Graphic
Sizing Details
Structure Profile
1. 1.0 mradian radius
The length is consistent with the anatomy of the FEMORAL medullary cavity.
2. Screw-in-screw design
Improves fixation strength specifically for osteoporosis. The Blunt End Design of the locking screw significantly reduces the risk of excessive penetration.
Nail Specifications
3. Sizing & Specifications
Short nail: Diameter of 8.0 / 9.5mm, length of 160mm.
Long nail: Diameter of 7.0 / 8.5mm, length of 180-315mm (15mm interval).
All nails feature left and right type configurations in titanium alloy. The diameter is suitable for all applications, supporting simple operation and minimally invasive implantation.

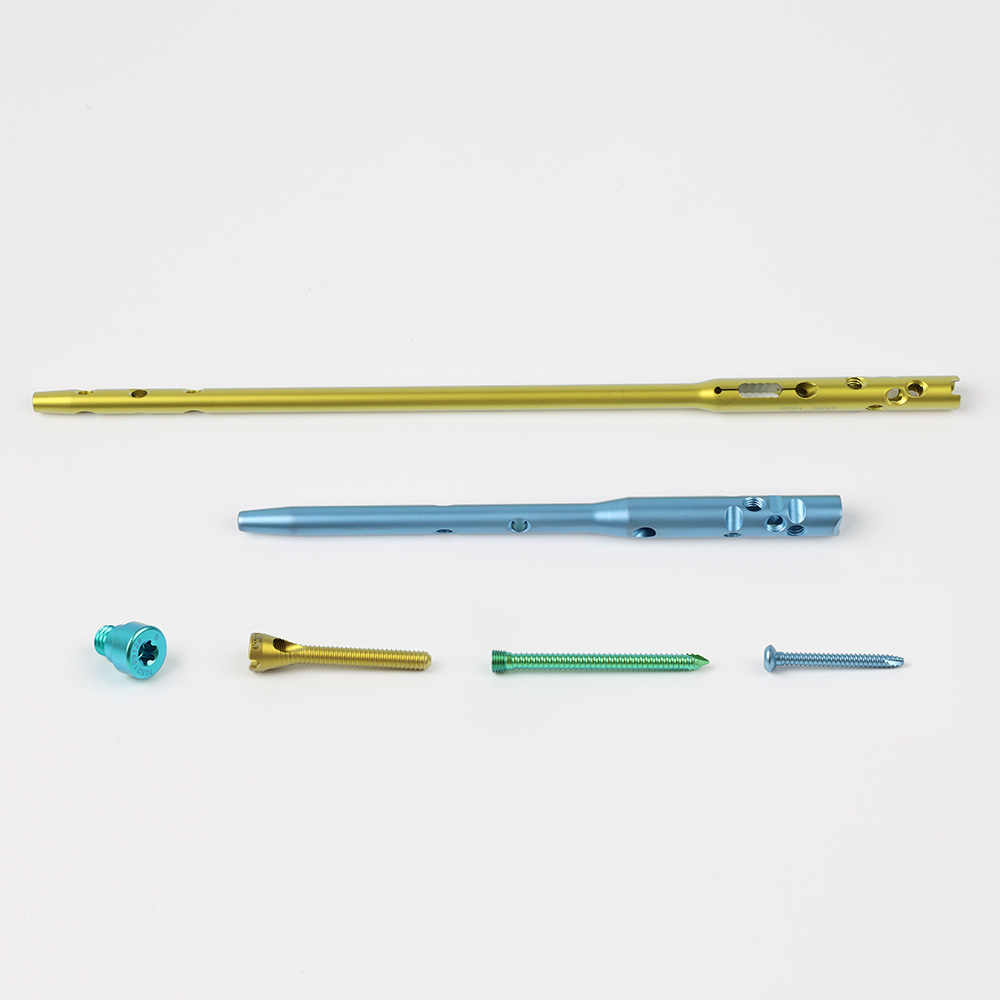

Details Images

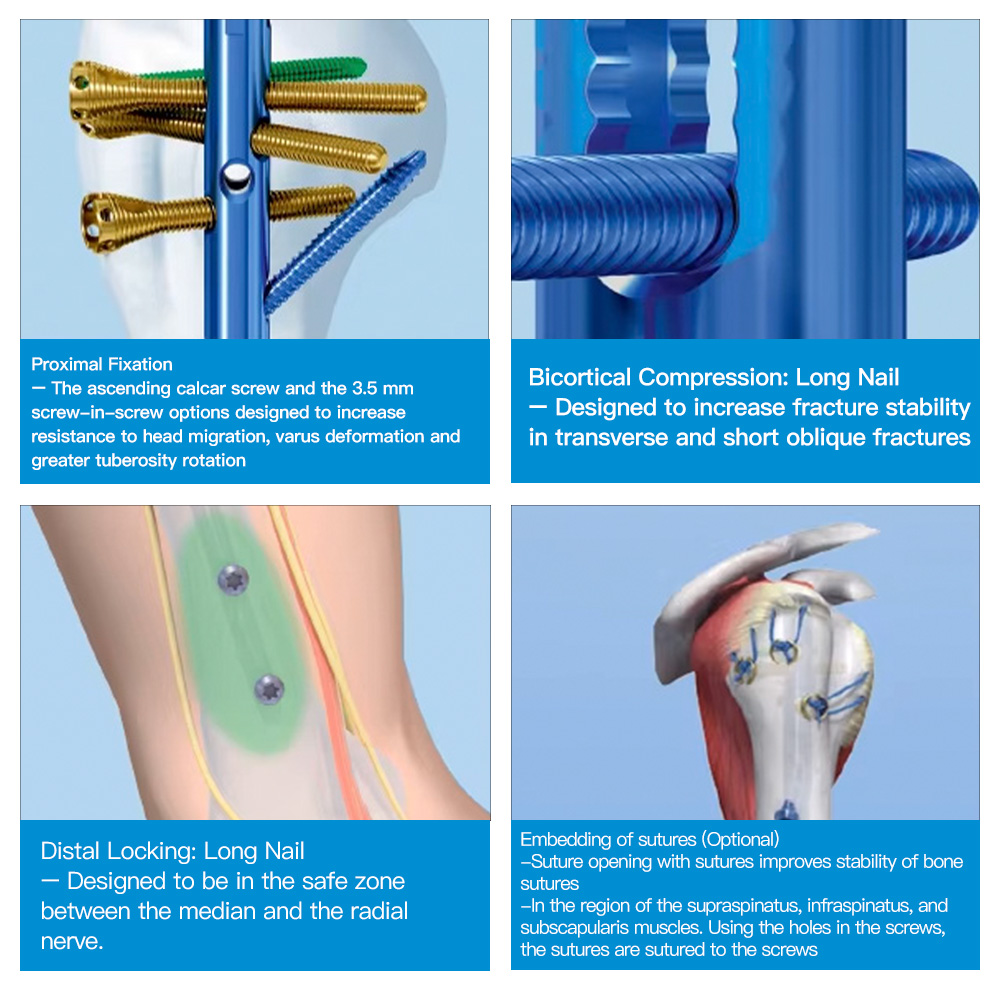

Proximal fixation
Proximal fixation:
Multi-plane and Multi-locking screw fixation options provide multiple options for operation to achieve optimal stability. The screw-in-screw design further improves fixation strength for osteoporosis, with a blunt head design reducing excessive penetration risks and a countersinking design mitigating soft tissue irritation.
Distal fixation
Distal fixation:
Short screw offers two different plane holes for locking. Long screw includes three locking holes designed to avoid critical blood vessels, placed in the safe zone between the median and radial nerves. Two anterior and posterior locking holes simplify manual operation, minimizing distal fracture rotation and displacement.
Compression details
Compression:
Specialized design of compression holes increases stability in transverse or short oblique fractures. Features a self-sustaining compression mechanism that requires no static screw to maintain compression during surgery.
TFNA System
TFNA System TFNA:
Compared to standard options with a radian radius of 1.5m, the TFNA's distal location has a 1.0m radian radius in the center of the medullary cavity, doubling the placement ease and anatomical fit accuracy.
Detailed specifications showcase
Company Profile
We are a leading orthopedic medical device R & D, manufacturing, and operation enterprise. We focus on the development, manufacturing, and sales of orthopedic trauma, spine, and bone joint implants and devices. Our sales network covers domestic and international markets, backed by sales offices in multiple regions. With first-class production equipment, a professional R & D, technology, and manufacturing team, a quality management system in line with international standards, and an efficient marketing service strategy, we have won the affirmation of many global partners.

Our company hosts a senior R & D technical team with many years of experience in orthopedic medical devices, achieving unique advancements in the orthopedic field. We place talent development at the forefront, building a highly skilled, professional innovation team. Adhering to the core philosophy of technological, product, and service innovation, we integrate premium resources to serve the global cause of human health, moving forward with determination.
Why Choose Us
Quality Assurance details
FAQ

Q1: Would you please give some information on shipping mode and charges?

A: Normally we send through couriers like DHL, FEDEX, UPS, TNT etc. or post upon request from clients.

Q2: Do you have ISO9001, ISO 13485, CE approvals?

A: Yes, all our orthopedic products are manufactured under strict international quality guidelines and hold ISO9001, ISO 13485, and CE certifications.

Q3: What is the minimum order that we can place? Do you provide free samples?

A: We expect minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders at the beginning to test our products in their markets. We can offer free samples, but the cost of freight must be covered by the buyer.

Q4: Can I buy products not shown but similar to your catalogue?

A: Of course you can, just send us pictures or samples. Please note that custom requests may take slightly longer to deliver.

Q5: Do you have stock for listed products, or they are newly produced? What are your terms of payment?

A: Generally, we maintain a rotating stock for listed products. However, it depends on sales conditions. We advise contacting our sales team for precise inventory. For payments <=800USD, 100% in advance. For payments >800USD, 30% T/T in advance, balance due before shipment. We accept payment via L/C, T/T, Western Union, PayPal etc.

Q6: What material is used for these intramedullary nails?

A: All our intramedullary nails are manufactured using high-grade, biocompatible Titanium Alloy, ensuring excellent mechanical strength, corrosion resistance, and safe integration.
