Osteora
Osteora
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|

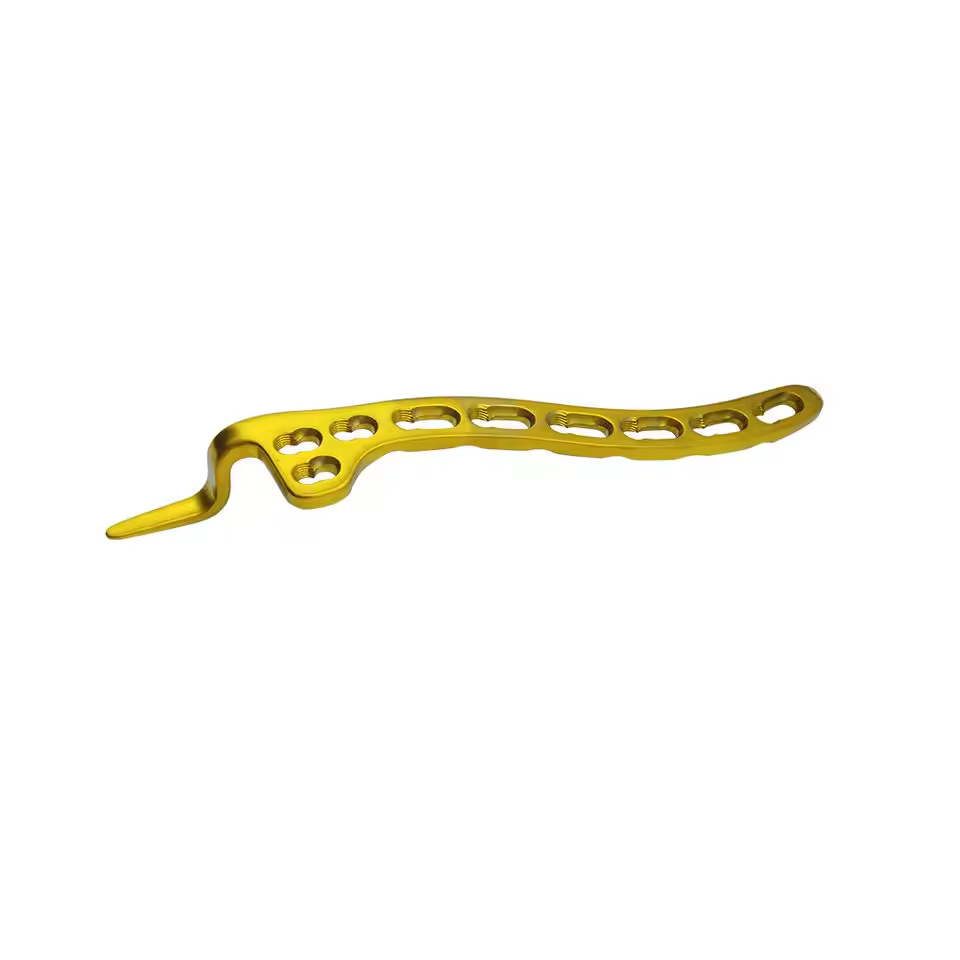

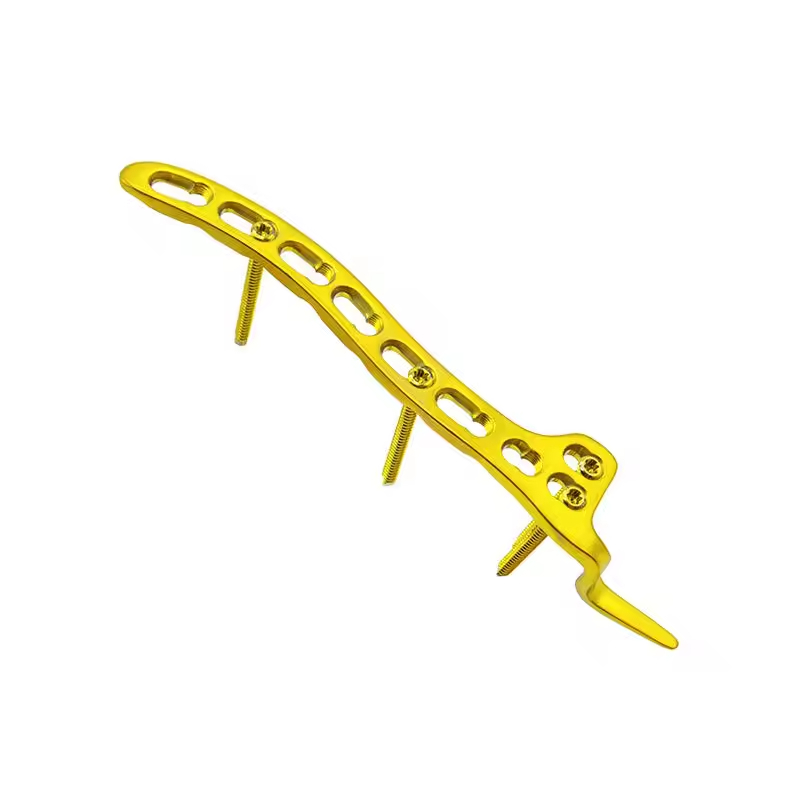

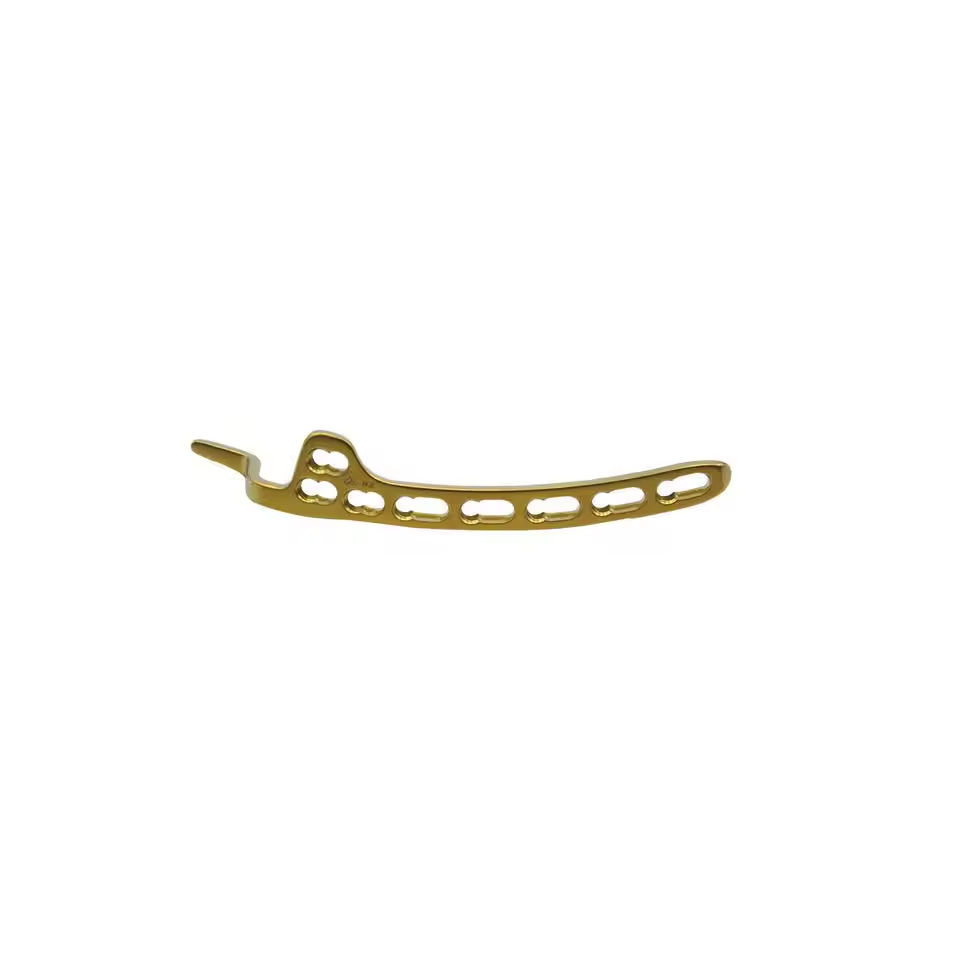

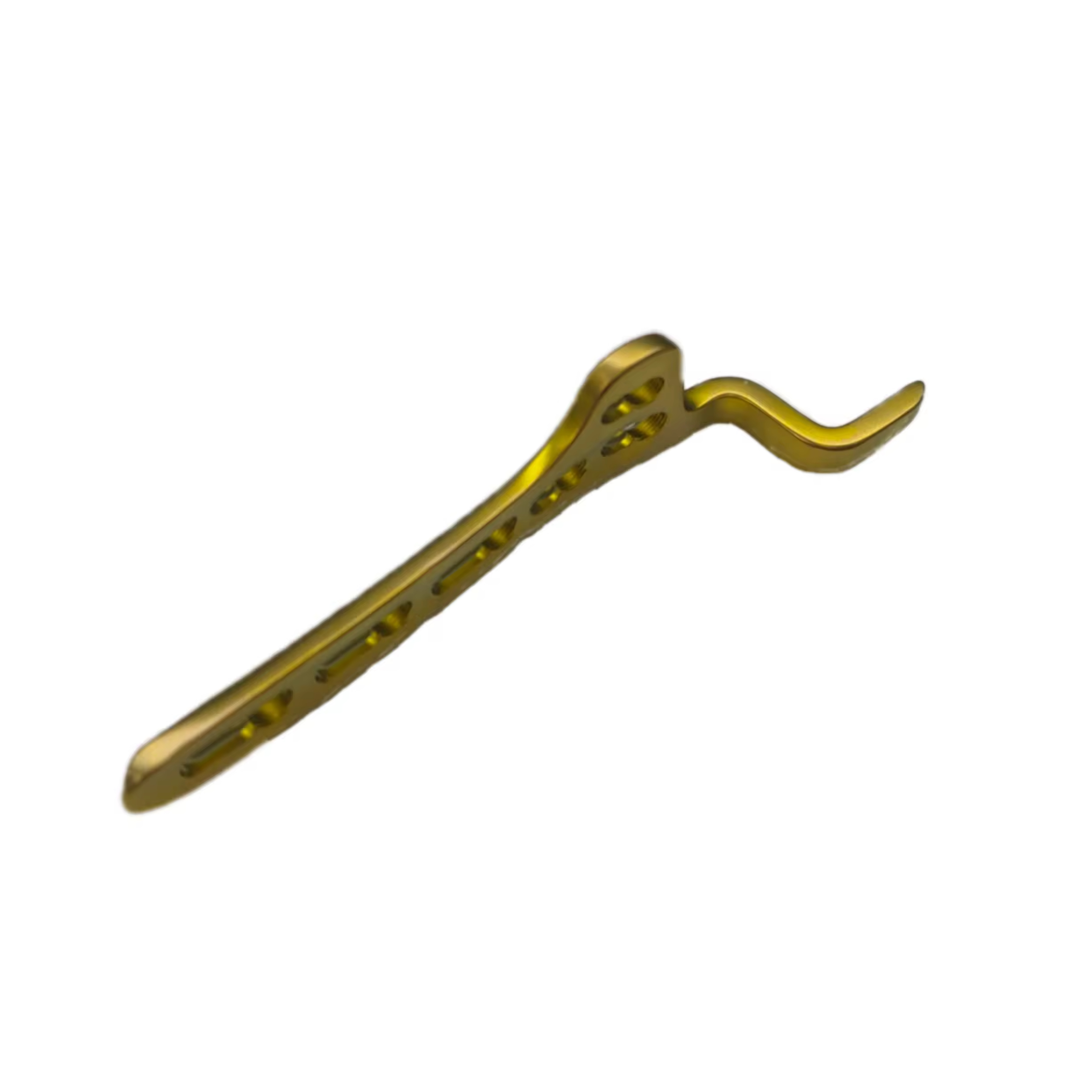

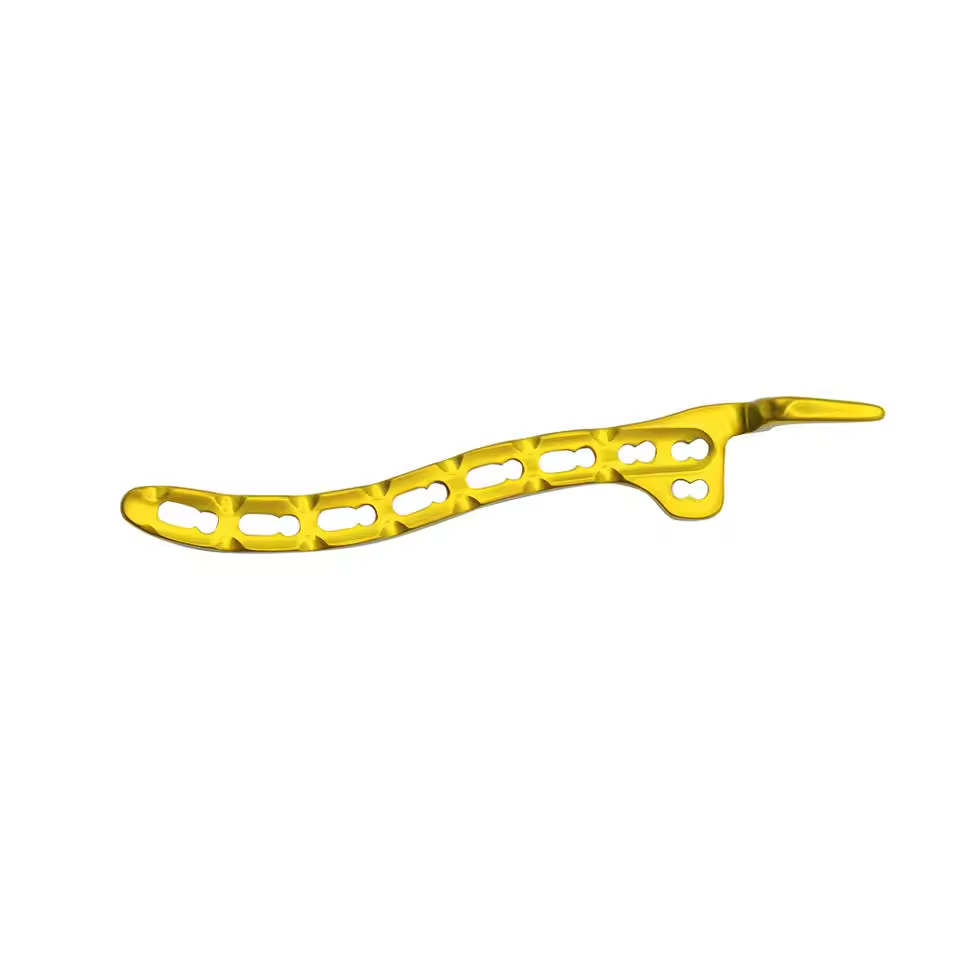

| Clavicular Hook Locking Plate | JPSD09 | 4--8 hole | Titanium Alloy | 10300204 |
Locking Plate: Suitable for internal fixation of fractures of limbs, pelvis, clavicle and hands and feet. It optimizes the pre-processed plate and designs a low profile. The fixed angle can be chosen freely according to the fracture situation.
| Product name | Model | Specification | Material | Code | 5--20 | 20 or more |
|---|---|---|---|---|---|---|
| Reconstruction Locking Plate | ZXSD02 | 6 hole | Titanium Alloy | 10010006 | 57.95 | 54.9 |
| Narrow Dynamic Locking Plate II | ZXSD05 | 6--14 hole | Titanium Alloy | 10040406 | 54.15 | 51.3 |
| Humeral compression locking plate | JPSD13 | 4--16 hole | Titanium Alloy | 10350203 | 57.95 | 54.9 |
| Clavicular Hook Locking Plate | JPSD09 | 4--8 hole | Titanium Alloy | 10300204 | 56.05 | 53.1 |
| Clavicular Hook Locking Plate II | JPSD90 | 4--10 hole | Titanium Alloy | 10300204 | 57 | 54 |
| Reconstruction Clavicular Locking Plate IV | JPSD94 | 7-9 hole | Titanium Alloy | 11150207 | 76 | 72 |
| Proximal humeral locking plate | JPSD33 | 3--14 hole | Titanium Alloy | 10540203 | 58.9 | 55.8 |
| Obique T- Locking Plate | JPSD07 | 3 hole | Titanium Alloy | 10280203 | 58.9 | 55.8 |
| Distal lateral humeral locking plate | JPSD13 | 3--11 hole | Titanium Alloy | 10280203 | 68.5 | 64.8 |
| Proximal ulnar locking plate | JPSD15 | 3--12 hole | Titanium Alloy | 10360203 | 71.25 | 67.5 |
| Distal radial locking plate II | JPSD78 | 3--8 hole | Titanium Alloy | 10990203 | 40.85 | 38.7 |
Titanium alloy material. The possibility of the screw head plate protrusion is reduced, and the fixing direction is more convenient to adjust.
High Security. Offering reliable insertion, the round, thin, blunt edge design allows for minimally invasive muscle penetration, adhesion to bone surfaces, and reduced tissue irritation.
Easy to operate. Extension holes in the middle of the plate to adjust the position of the plate. Plate can be placed on the ulnar and radial sides of the phalanx.
Made of titanium alloy material. Features 3 different dorsiflexion angles (0/ 5/ 10 respectively), suitable for different joints. Reliable design with Kirschner wire compression holes and slots in the middle of plate. Etching lines on the plate indicate the correct fusion position.
Plates are anatomically precontoured. Features a countersinkable head design of 2.7mm screw to reduce tissue irritation. 5 types of medial-lateral distal humeral locking plates allow doctors to determine fracture fixation schemes according to the condition.
Titanium alloy material. Extension holes in the middle of the plate allow adjusting the position of the plate. The plate can be placed on the ulnar and radial sides of the phalanx. Plates are anatomically precontoured of the phalanx and have left and right types.
The volar / dorsal distal radius combination provides a rich options scope for doctors. Precontoured design adheres to the bone surface to reduce tissue irritation. Features a round, thin, blunt edge design for minimally invasive insertion through the muscle.
Titanium alloy material. Anatomically precontoured plates adhere to the calcaneal protrusion, posterior articular talus and calcaneal tubercle. The countersinkable head design of the screw reduces the possibility of the screw head protruding from the plate surface.
