Geasure Surgical Titanium Orthopedic Implants Orthopedic Distal Tibia Locking Plate 3.5
Geasure Surgical Titanium Orthopedic Implants Orthopedic Distal Tibia Locking Plate 3.5
Geasure Surgical Titanium Orthopedic Implants Orthopedic Distal Tibia Locking Plate 3.5
Geasure Surgical Titanium Orthopedic Implants Orthopedic Distal Tibia Locking Plate 3.5
1 / 4
Geasure Surgical Titanium Orthopedic Implants Orthopedic Distal Tibia Locking Plate 3.5
Geasure Surgical Titanium Orthopedic Implants Orthopedic Distal Tibia Locking Plate 3.5
Geasure Surgical Titanium Orthopedic Implants Orthopedic Distal Tibia Locking Plate 3.5
Geasure Surgical Titanium Orthopedic Implants Orthopedic Distal Tibia Locking Plate 3.5

Geasure Surgical Titanium Orthopedic Implants Orthopedic Distal Tibia Locking Plate 3.5

Send Inquiry

Product Description

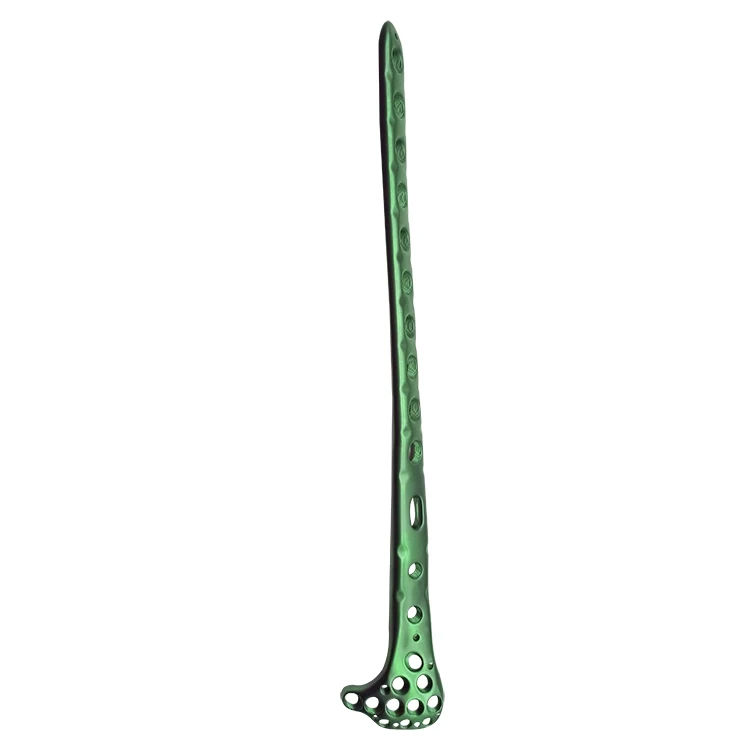

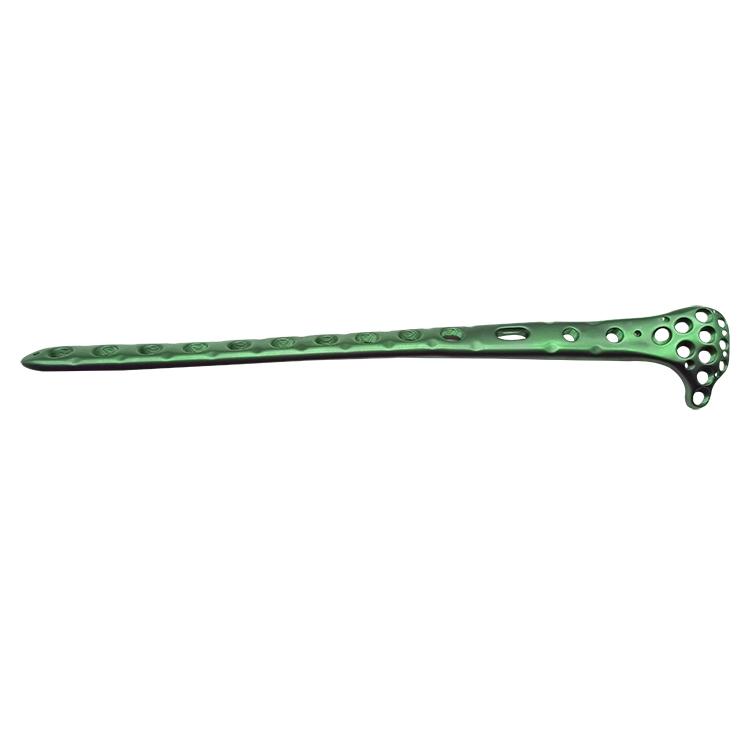

Distal Tibial Lateral Locking Plate Details Distal Tibial Lateral Locking Plate View
Product Name Model Material
Type II Distal Tibial Lateral Locking Plate JPSD114 Titanium Alloy
Fit: 2.7mm locking screw, 3.5mm locking screw, 5.0mm locking screw, 4.5mm cortical bone screw, 6.5mm cancellous bone screw
Code Direction Specification Length
11350205Left5142mm
11350305Right5142mm
11350206Left6157mm
11350306Right6157mm
11350207Left7172mm
11350307Right7172mm
11350208Left8187mm
11350308Right8187mm
11350209Left9202mm
11350309Right9202mm
11350210Left10217mm
11350310Right10217mm
11350211Left11232mm
11350311Right11232mm
11350212Left12242mm
11350312Right12242mm
Bone Plates Product Collection
Product Name Model Specification Material Code 5 - 20 (Qty Price) 20 & Above (Qty Price)
Reconstruction Locking Plate ZXSD02 6 hole Titanium Alloy 10010006 57.95 54.9
Narrow Dynamic Locking Plate II ZXSD05 6--14 hole Titanium Alloy 10040406 54.15 51.3
Humeral compression locking plate JPSD13 4--16 hole Titanium Alloy 10350203 57.95 54.9
Clavicular Hook Locking Plate JPSD09 4--8 hole Titanium Alloy 10300204 56.05 53.1
Clavicular Hook Locking Plate II JPSD90 4--10 hole Titanium Alloy 10300204 57 54
Reconstruction Clavicular Locking Plate IV JPSD94 7-9 hole Titanium Alloy 11150207 76 72
Proximal humeral locking plate JPSD33 3--14 hole Titanium Alloy 10540203 58.9 55.8
Obique T- Locking Plate JPSD07 3 hole Titanium Alloy 10280203 58.9 55.8
Distal lateral humeral locking plate JPSD13 3--11 hole Titanium Alloy 10280203 68.5 64.8
Proximal ulnar locking plate JPSD15 3--12 hole Titanium Alloy 10360203 71.25 67.5
Distal radial locking plate II JPSD78 3--8 hole Titanium Alloy 10990203 40.85 38.7
First Metatarsophalangeal Joint Fusion Plate
2.4/ 2.7mm First metatarsophalangeal joint fusion variable locking plate (titanium alloy material):
3 different dorsiflexion angles (0/ 5/ 10 respectively) are suitable for different joints. Features reliable Kirschner wire compression holes and slots in the middle of plate. Etching lines on the plate indicate the correct fusion position.
Medial-lateral distal humeral locking plate
Medial-lateral distal humeral locking plate:
Plates are anatomically precontoured. Designed with a countersinkable head design of 2.7mm screw to reduce tissue irritation. 5 types of medial-lateral distal humeral locking plates allow doctors to determine fracture fixation schemes according to the clinical condition.
Phalanx variable locking plate
1.3/ 1.5mm Phalanx variable locking plate (titanium alloy material):
Features extension holes in the middle of the plate to adjust positioning. The plate can be placed on both the ulnar and radial sides of the phalanx. Plates are anatomically precontoured to the phalanx and are available in left and right types.
Distal radius locking plate
Distal radius locking plate:
The volar / dorsal distal radius combination provides versatile choices for surgical placement. The precontoured design adheres closely to the bone surface to reduce tissue irritation. Rounded, thin, and blunt edge design supports minimally invasive insertion through the muscle.
Calcaneus variable locking plate
2.7mm Calcaneus variable locking plate (titanium alloy material):
Anatomically precontoured plates adhere securely to the calcaneal protrusion, posterior articular talus, and calcaneal tubercle. The countersinkable head design of the screw minimizes the possibility of the screw head protruding above the plate surface.
Orthopedic Medical Devices
Spinal Fusion Cages and Implants Intramedullary Interlocking Nails
Production & Manufacturing Facility
Manufacturing Area Processing Equipment Quality Inspection
Frequently Asked Questions
Q1 Would you please give some information on shipping mode and charges?
Normally we send through courier like DHL, FEDEX, UPS, TNT etc. or post upon request from clients.
Q2 Do you have ISO9001, ISO 13485, CE approvals?
Yes, our production facilities and orthopedic products conform strictly to international quality standard procedures. Detailed documents can be provided upon request.
Q3 What is the minimum order that we can place?
We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning in order to test the market for our products.
Q4 Do you provide free samples?
We could offer free samples, but we do not pay the cost of freight. Freight costs must be handled by the buyer.
Q5 Can I buy products not shown but similar to your catalogue?
Of course you can, just send us pictures or samples. Please note that this takes a little longer time for delivery.
Q6 Do you have stock for listed products, or they are newly produced? What are your terms of payment?
Generally, we have stock for every listed product, which are produced monthly. However, it depends on our sales condition. Payment <= 800 USD, 100% in advance. Payment > 800 USD, 30% T/T in advance, balance before shipment. Payment methods include L/C, T/T, Western Union, PayPal etc.
