Geasure Titanium Proximal Lateral Tibia Locking Plate Orthopedic Surgery Implants & Interventional Materials for Hospital Use

Product Description

Orthopedic Device Banner 1
Orthopedic Device Banner 2
Product name Model Specification Material Code

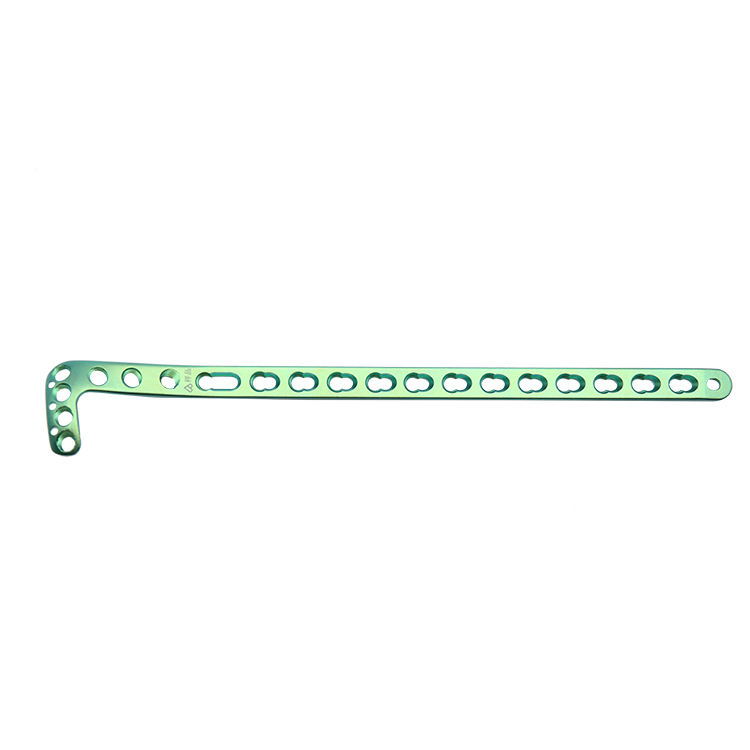

Lateral Proximal Tibia Locking Plate JPSD31 6 hole left Titanium Alloy 10520206

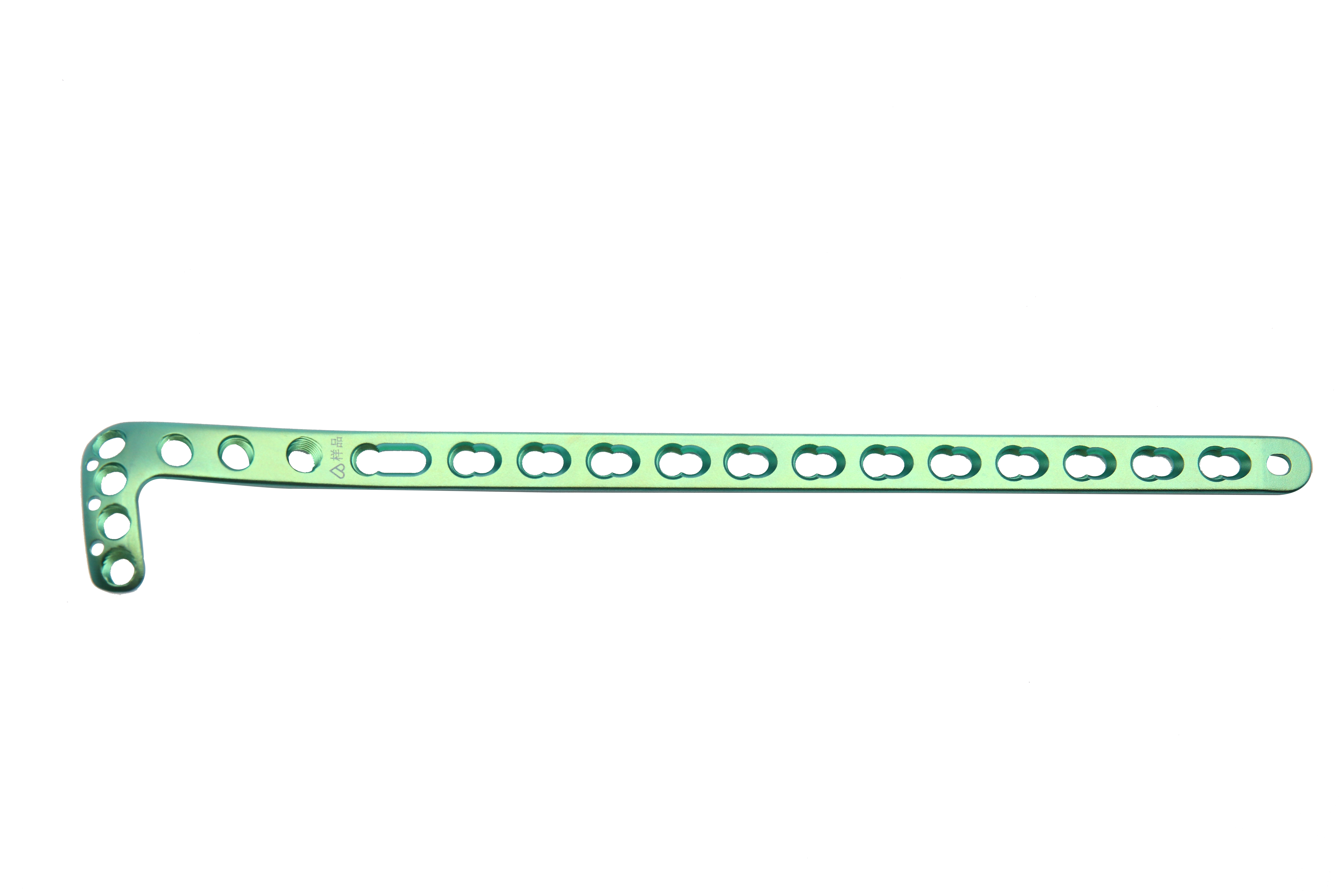

Locking Plate Diagram
Fit: 3.5mm locking screw, 3.5mm cortical bone screw, 4.0mm cancellous bone screw
Code Direction Specification Length
10520206Left6102mm
10520306Right6102mm
10520207Left7115mm
10520307Right7115mm
10520208Left8128mm
10520308Right8128mm
10520209Left9141mm
10520309Right9141mm
10520210Left10154mm
10520310Right10154mm
10520211Left11167mm
10520311Right11167mm
10520212Left12180mm
10520312Right12180mm
10520213Left13193mm
10520313Right13193mm
10520214Left14206mm
10520314Right14206mm
10520215Left15219mm
10520315Right15219mm
10520216Left16232mm
10520316Right16232mm
10520217Left17245mm
10520317Right17245mm
10520218Left18258mm
10520318Right18258mm
10520219Left19271mm
10520319Right19271mm
10520220Left20284mm
10520320Right20284mm
First metatarsophalangeal joint fusion plate

2.4/ 2.7mm First metatarsophalangeal joint fusion variable locking plate (titanium alloy material)

  • 3 different dorsiflexion angles, 0/ 5/ 10 respectively, are suitable for different joints.
  • Reliable Kirschner wire compression holes and slots in the middle of plate.
  • Etching lines on the plate indicate the correct fusion position.
Medial-lateral distal humeral locking plate

Medial-lateral distal humeral locking plate

  • Plates are anatomically precontoured.
  • With countersinkable head design of 2.7mm screw to reduce tissue irritation.
  • 5 types of medial-lateral distal humeral locking plates allow doctors to determine fracture fixation schemes according to the condition.
Phalanx variable locking plate

1.3/ 1.5mm Phalanx variable locking plate (titanium alloy material)

  • Extension holes in the middle of the plate to adjust the position of the plate.
  • Plate can be placed on the ulnar and radial sides of the phalanx.
  • Plates are anatomically precontoured of phalanx and have left and right types.
Distal radius locking plate

Distal radius locking plate

  • The volar / dorsal distal radius combination provides a rich imagination space for doctors.
  • Precontoured design adheres to bone surface to reduce tissue irritation.
  • Round thin blunt edge design for minimally invasive insertion through the muscle.
Calcaneus variable locking plate

2.7mm Calcaneus variable locking plate (titanium alloy material)

  • Anatomically precontoured plates adhere to calcaneal protrusion, posterior articular talus and calcaneal tubercle.
  • Countersinkable head design of screw reduces the possibility of screw head protruding plate surface.
Orthopedic Medical Devices
Orthopedic Implants Grid 1 Orthopedic Implants Grid 2
Production Facility 1 Production Facility 2 Production Facility 3
Frequently Asked Questions

Q1: Would you please give some information on shipping mode and charges?

A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.

Q2: Do you have ISO9001, ISO 13485, CE approvals?

A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.

Q3: What is the minimum order that we can place? Do you provide free samples?

A: We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.

Q4: Can I buy products not shown but similar to your catalogue?

A: Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.

Q5: Do you have stock for listed products, or they are newly produced?

A: Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information.

Q6: What are your terms of payment?

A: Payment<=800USD, 100% in advance. Payment>800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.
