| Product name | Model | Specification | Material | Fit |
|---|---|---|---|---|
| Lateral locking plate for the distal humerus | JPSD13 | 4--16 hole | Titanium Alloy | 3.5mm locking screw, 2.7mm locking screw, 3.5mm cortical bone screw, and 4.0mm cancellous bone screw |
| Code | Direction | Specification | Length |
|---|---|---|---|
| 10340203 | Left | 3 | 66mm |
| 10340303 | Right | 3 | 66mm |
| 10340204 | Left | 4 | 79mm |
| 10340304 | Right | 4 | 79mm |
| 10340205 | Left | 5 | 92mm |
| 10340305 | Right | 5 | 92mm |
| 10340206 | Left | 6 | 105mm |
| 10340306 | Right | 6 | 105mm |
| 10340207 | Left | 7 | 118mm |
| 10340307 | Right | 7 | 118mm |
| 10340208 | Left | 8 | 131mm |
| 10340308 | Right | 8 | 131mm |
| 10340209 | Left | 9 | 144mm |
| 10340309 | Right | 9 | 144mm |
| 10340210 | Left | 10 | 157mm |
| 10340310 | Right | 10 | 157mm |
| 10340211 | Left | 11 | 170mm |
| 10340311 | Right | 11 | 170mm |
| Product name | Model | Specification | Material | Code | 5--20 Units | 20+ Units |
|---|---|---|---|---|---|---|
| Reconstruction Locking Plate | ZXSD02 | 6 hole | Titanium Alloy | 10010006 | 57.95 | 54.9 |
| Narrow Dynamic Locking Plate II | ZXSD05 | 6--14 hole | Titanium Alloy | 10040406 | 54.15 | 51.3 |
| Humeral compression locking plate | JPSD13 | 4--16 hole | Titanium Alloy | 10350203 | 57.95 | 54.9 |
| Clavicular Hook Locking Plate | JPSD09 | 4--8 hole | Titanium Alloy | 10300204 | 56.05 | 53.1 |
| Clavicular Hook Locking Plate II | JPSD90 | 4--10 hole | Titanium Alloy | 10300204 | 57 | 54 |
| Reconstruction Clavicular Locking Plate IV | JPSD94 | 7-9 hole | Titanium Alloy | 11150207 | 76 | 72 |
| Proximal humeral locking plate | JPSD33 | 3--14 hole | Titanium Alloy | 10540203 | 58.9 | 55.8 |
| Obique T- Locking Plate | JPSD07 | 3 hole | Titanium Alloy | 10280203 | 58.9 | 55.8 |
| Distal lateral humeral locking plate | JPSD13 | 3--11 hole | Titanium Alloy | 10280203 | 68.5 | 64.8 |
| Proximal ulnar locking plate | JPSD15 | 3--12 hole | Titanium Alloy | 10360203 | 71.25 | 67.5 |
| Distal radial locking plate II | JPSD78 | 3--8 hole | Titanium Alloy | 10990203 | 40.85 | 38.7 |
Features 3 different dorsiflexion angles (0/ 5/ 10 respectively), suitable for different joint demands. Reliable Kirschner wire compression holes and slots are situated in the middle of the plate. Etching lines indicate the correct fusion position.

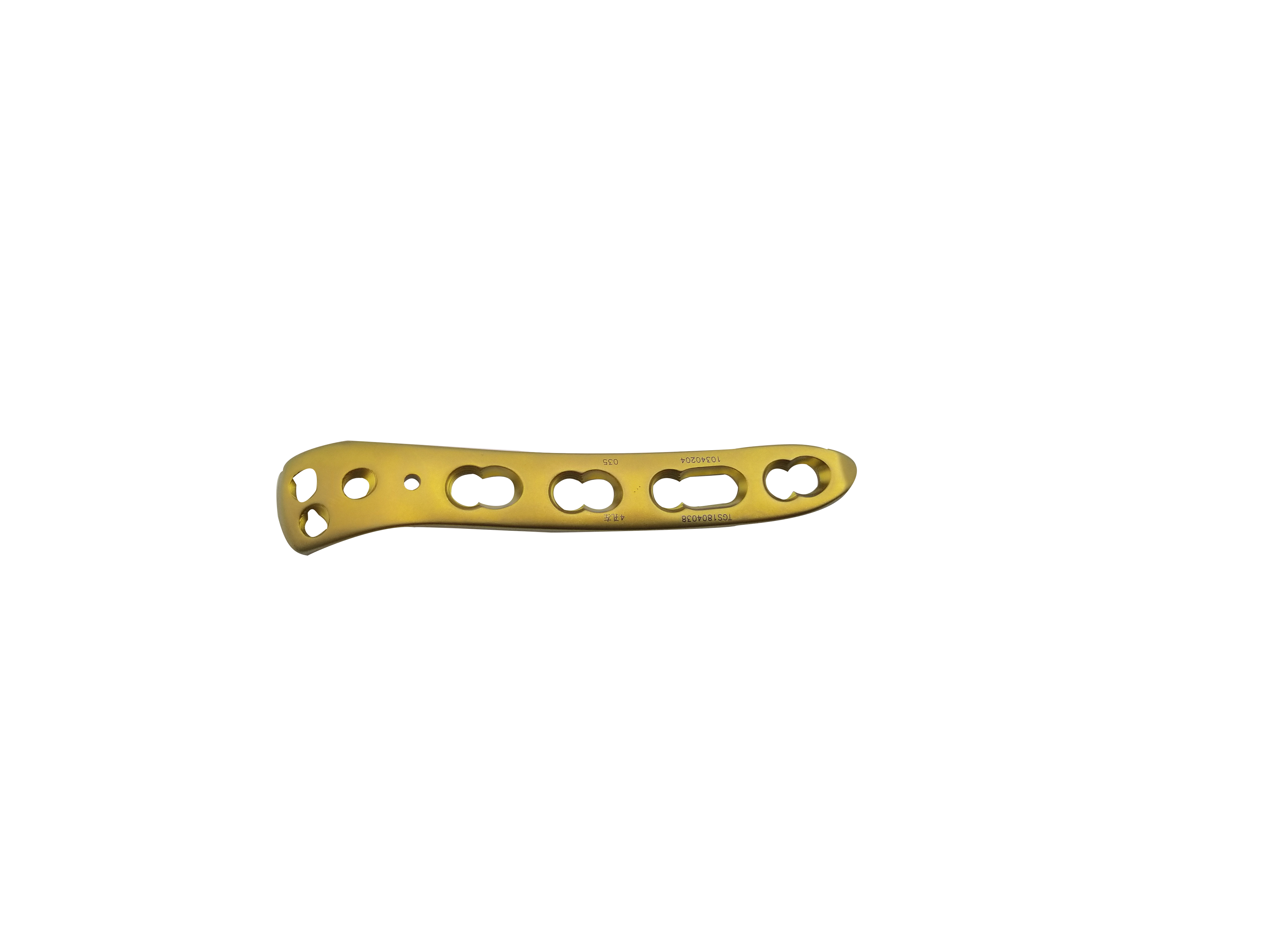

Plates are anatomically precontoured. Designed with a countersinkable head for 2.7mm screws to effectively reduce tissue irritation. 5 distinct types of medial-lateral distal humeral locking plates allow doctors to configure customizable fracture fixation schemes.
Includes extension holes in the middle of the plate to adjust positional placement. The plate can be optimally placed on both the ulnar and radial sides of the phalanx. Precontoured anatomical designs exist in left and right types.
The volar / dorsal distal radius combination provides variable options for surgical applications. The precontoured design adheres closely to the bone surface to reduce soft tissue irritation. Features a round, thin, blunt edge design for minimally invasive insertion.
Anatomically precontoured plates adhere securely to the calcaneal protrusion, posterior articular talus, and calcaneal tubercle. A countersinkable screw head design reduces the possibility of protruding hardware.
