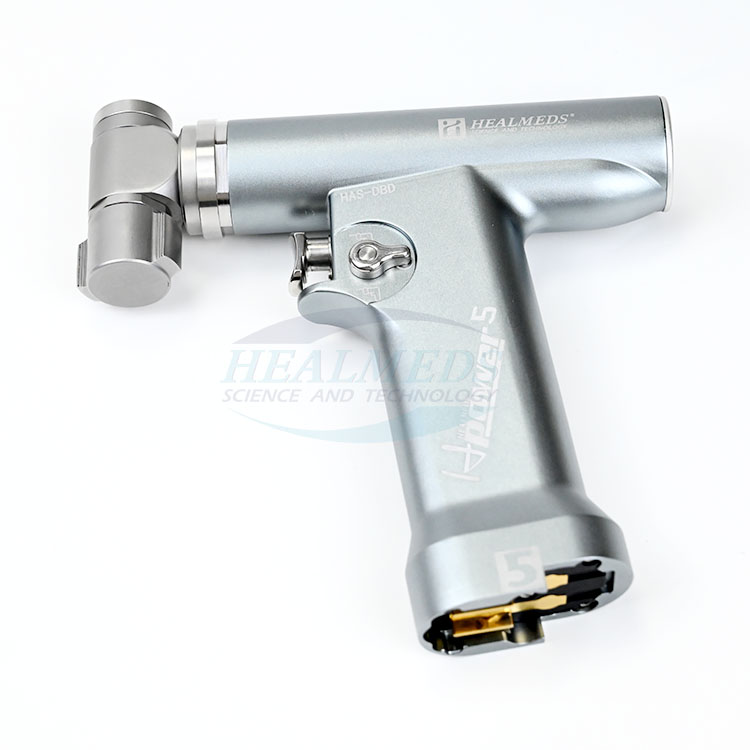

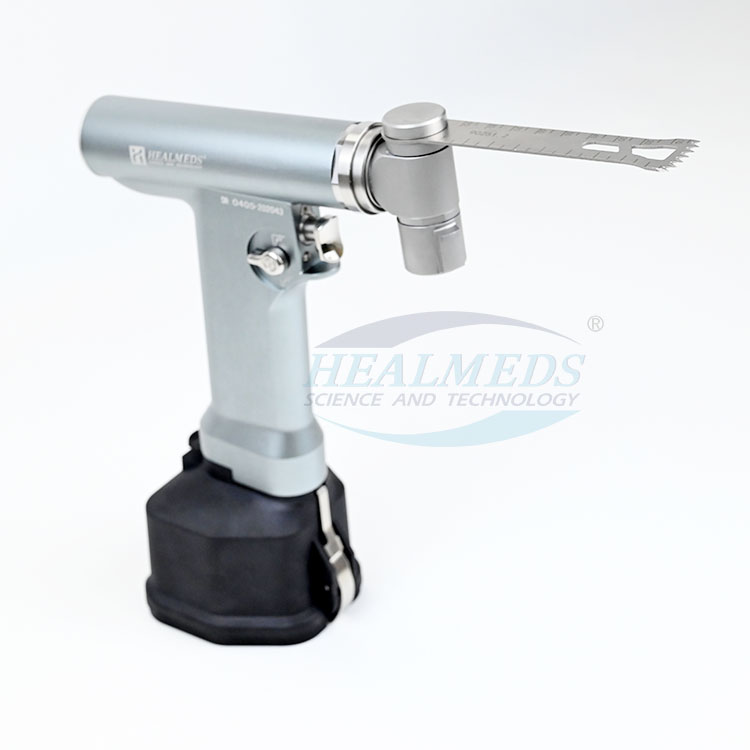

Surgical Brushless Motor Bone Hospital Machine Set Sagittal Orthopedic Power Saw

Product Description

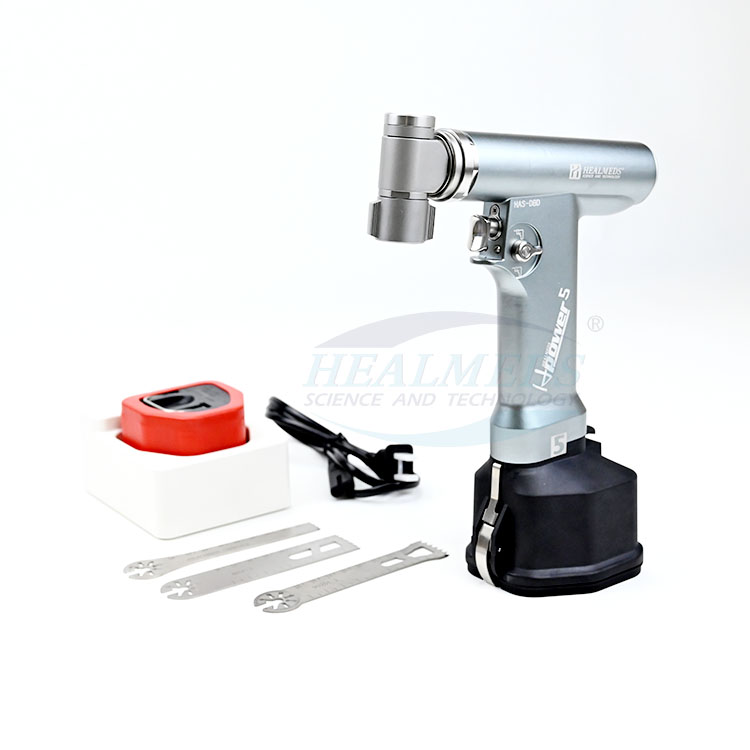

Surgical brushless motor bone hospital machine set sagittal orthopedic power saw
Product Description
Technical Data
No. Item Value No. Item Value
1 Oscillation 0-16000cpm 4 Sterilization ≤135°C
2 Battery capacity 2100mAh 5 Operation(V) voltage 9.6V
3 Battery type Ni-MH battery 6 Noise ≤75dB
Configuration

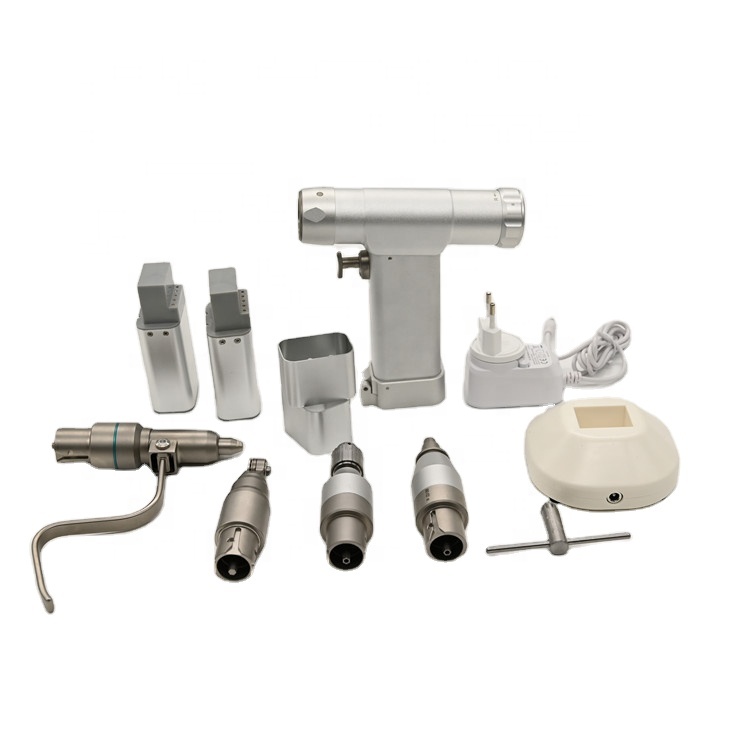

No. Accessory Quantity (PC) Note
1 Handpiece 1 Standard
2 Battery 2 Standard
3 Charger 1 Standard

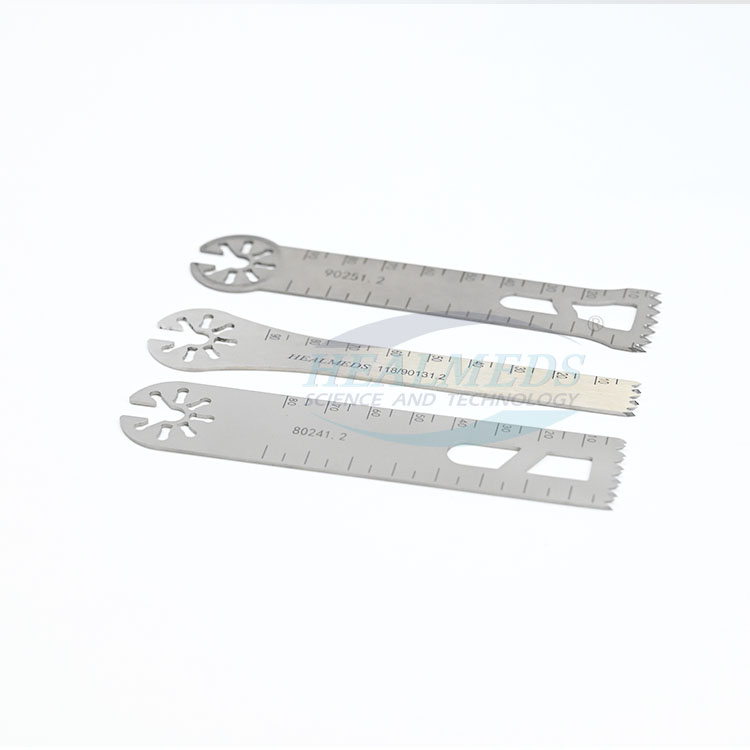

4 Blades 3 Standard

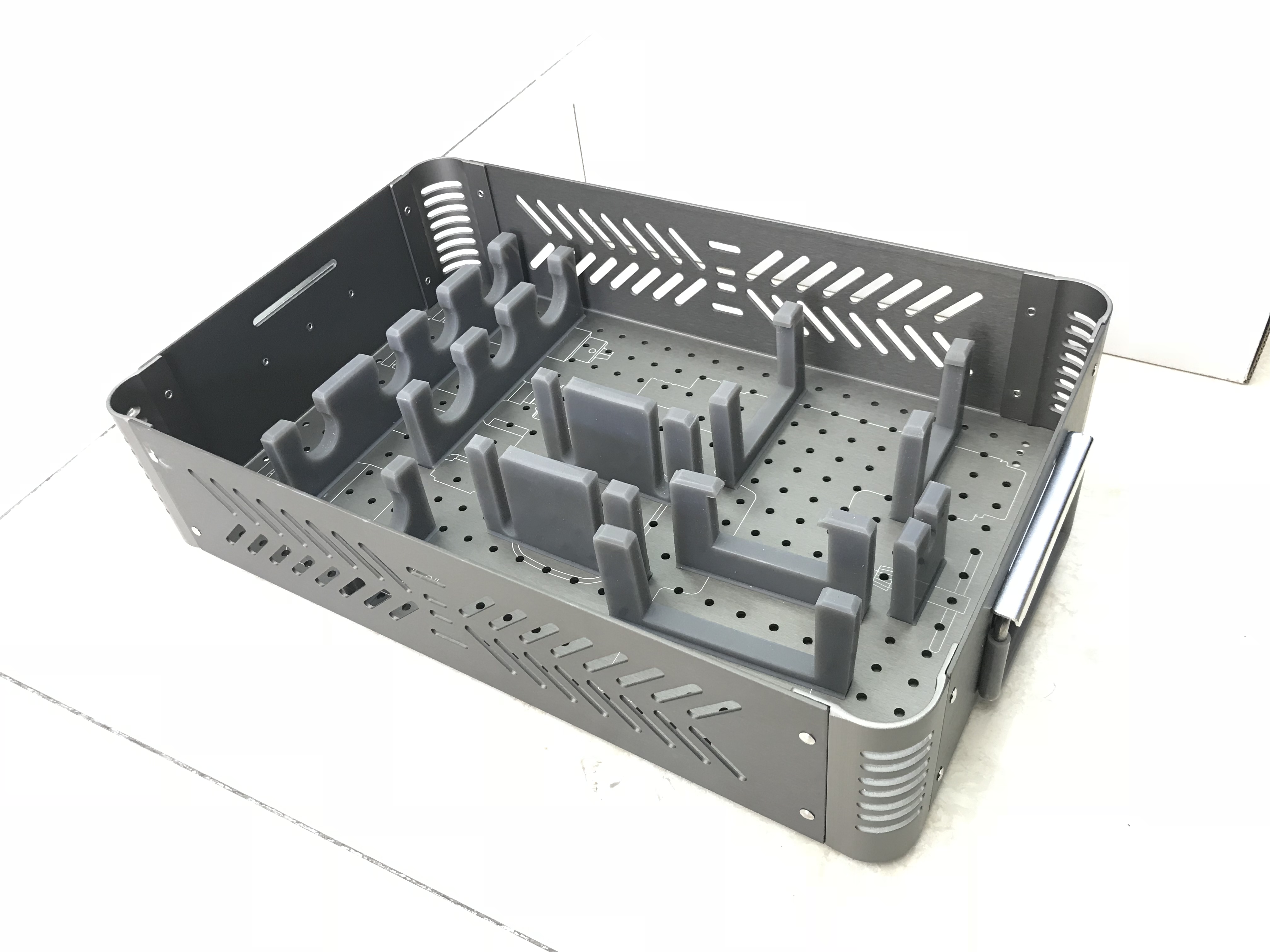

5 Sterilization channel 1 Standard
6 Aluminum alloy case 1 optional
Surgical Brushless Motor Bone Hospital Machine Set Sagittal Orthopedic Power Saw
Features
  • Made of High-strength stainless steel!!
  • Mini handpiece, suitable for use!!
  • Imported Motor, excellent performance!!
  • No Limit speed-changing, convenient!!
Warranty

Warranty for whole machine is 1 year, for motor is 2 years, for the battery and other fast consumption items is 3 months.

Notes
  • Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ), if the temperature is over 135 °C, the motor will be damaged.
  • Normal bone drill can only hold drill bits less than 6mm, acetabulum reaming drill with big torque, rpm is around 300, canulate drill is used with nail or K wire, rpm is around 600.
  • The battery need to be get out of the power tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
  • The battery cannot be sterilized, it is not autoclavable.
  • The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur, then we should make it dry.
  • The battery space in the handpiece of the tool should not have any water, after sterilization.
  • The cranial bur blade is made of medical stainless steel, in order to avoid broken, so it is flexible and not very hard, it is easy to be attrite, we suggest each blade only use for 1 surgery.
You May Like
Surgical Brushless Motor Bone Hospital Machine Set Sagittal Orthopedic Power Saw
Surgical Brushless Motor Bone Hospital Machine Set Sagittal Orthopedic Power Saw
Surgical Brushless Motor Bone Hospital Machine Set Sagittal Orthopedic Power Saw
Surgical Brushless Motor Bone Hospital Machine Set Sagittal Orthopedic Power Saw
Surgical Brushless Motor Bone Hospital Machine Set Sagittal Orthopedic Power Saw
Surgical Brushless Motor Bone Hospital Machine Set Sagittal Orthopedic Power Saw
Surgical Brushless Motor Bone Hospital Machine Set Sagittal Orthopedic Power Saw
Company Information

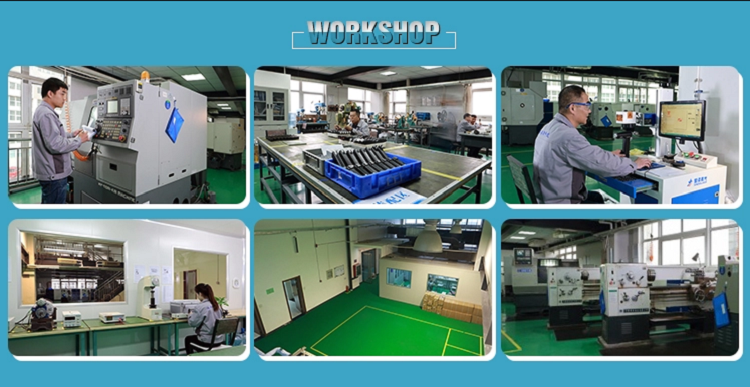

We were established in 2005. We are a medical device manufacturer integrated with R&D, production and sales. We organize production strictly in accordance with the national GMP certification standards. We focus on medical drill series, saw series, medical warming systems and point therapy plasters etc. Our main products include medical bone drills, multi-function canulate drills, oscillating saws, reciprocating saws and medical electric plaster saws, patient warming systems and point therapy plasters, which can be used in many surgeries such as trauma operations, thoracic surgery, joint operations, and veterinary orthopedics, etc.

In the past years, our target has always been aiming at "Professional, Dedicated, Innovative, Share & win-win", which supports us to maintain long-term development in today's medical device market and get a satisfying market share worldwide.

Surgical Brushless Motor Bone Hospital Machine Set Sagittal Orthopedic Power Saw
Certificates

CE / ISO13485 / FSC

Certificate 1
Certificate 2
Certificate 3
Packaging & Shipping

Packing: Optional Aluminum case for each set, then into a good quality carton, or on request.

Shipping: Door to door courier like DHL / TNT / UPS / FEDEX, or shipped by air/sea.

Packaging & Shipping
Frequently Asked Questions
Q1: What is the maximum sterilization temperature for the handpiece?
A1: The handpiece can be sterilized at temperatures ≤ 135 °C (Improved type can withstand ≤ 155 °C). Exceeding these limits may damage the motor.
Q2: Can the battery pack be sterilized in an autoclave?
A2: No, the battery pack cannot be sterilized and is not autoclavable. It must be kept dry and out of the autoclave.
Q3: Why must the battery be removed after surgery?
A3: The battery must be removed from the handpiece to prevent small, automatic discharge, which can significantly shorten the overall lifespan of the battery.
Q4: How should the cranial bur and blades be maintained post-surgery?
A4: The cranial bur must be washed immediately after the surgery using a purger to avoid blood sticking inside, and then dried. It is recommended to use each blade for only one surgery.
Q5: What is the warranty coverage for this surgical saw set?
A5: We provide a 1-year warranty for the whole machine, a 2-year warranty for the motor, and a 3-month warranty for the battery and other fast-consumption items.
Q6: What packing options are available for the orthopedic saw?
A6: Standard packing includes an optional protective aluminum case for each set, which is then placed in a high-quality carton box. Customized packaging is available upon request.
