Osteora
Osteora

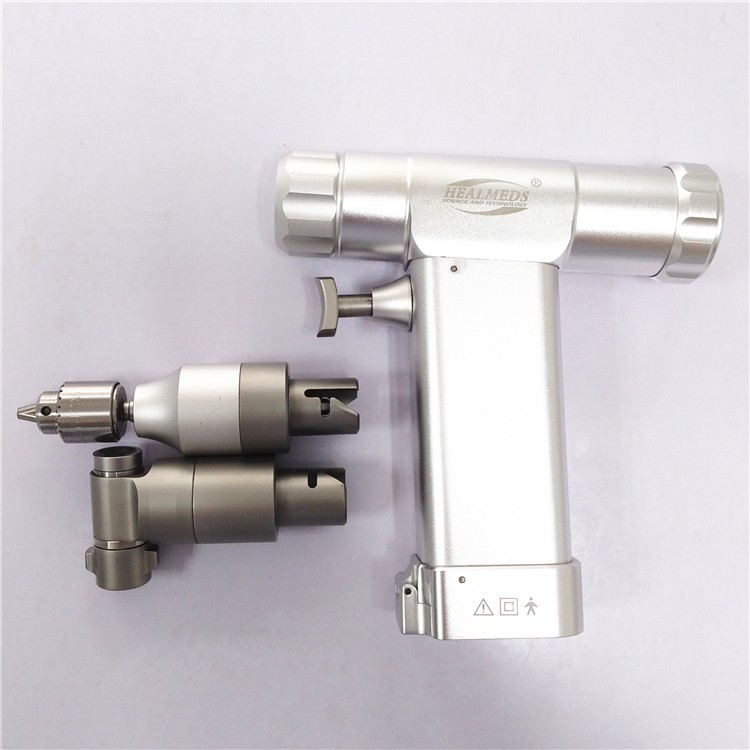

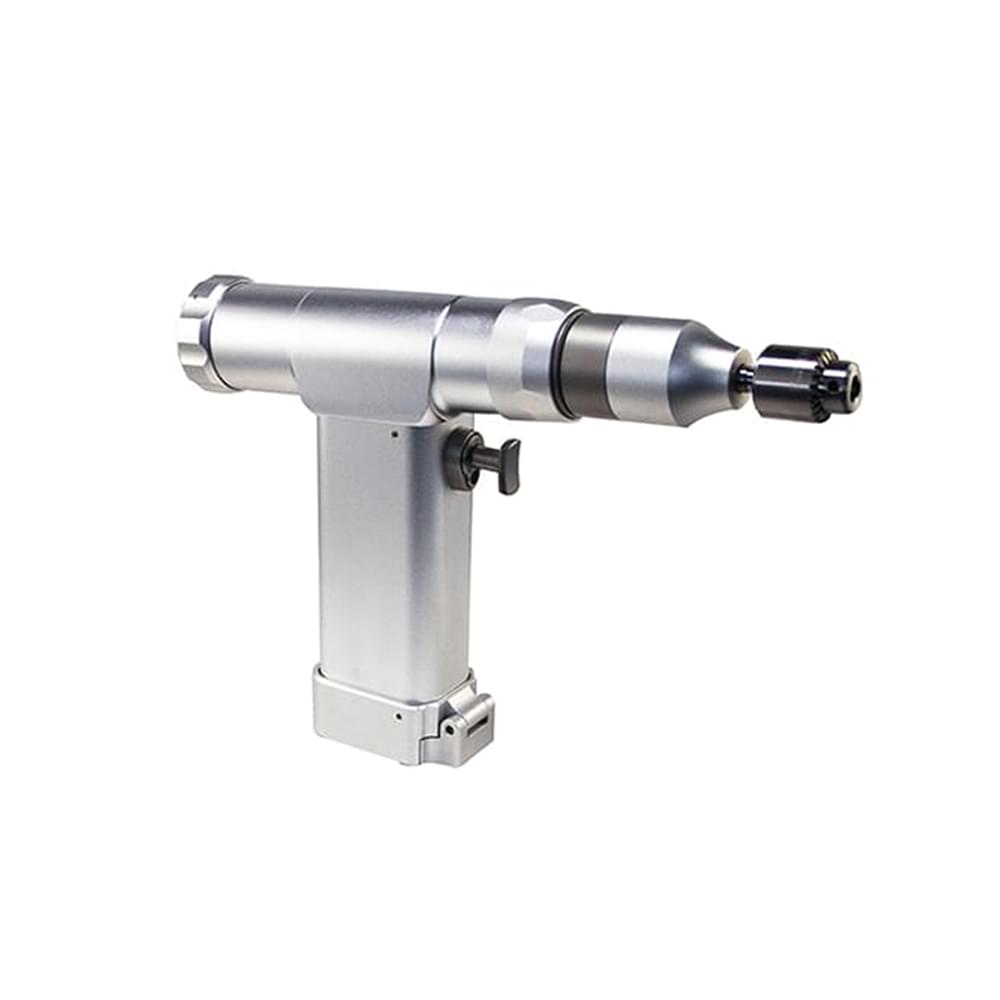

High-performance surgical micro bone saw and drill system designed for veterinary orthopedic surgeries.
| Parameter | Data |
|---|---|
| Speed | 0-1200rpm |
| Torque | 2.9N.m |
| No-load Noise | ≤45dB |
| Operation(V) voltage | 7.2V |
| Sterilization temperature | 155° |
| Radial circle run-out | ≤0.1mm |
| Axial Movement | ≤0.5mm |
| Chuck gripper diameter | ≤4mm |
| Oscillations | 0-16000cpm |
| Battery Capacity | 1400mAh |

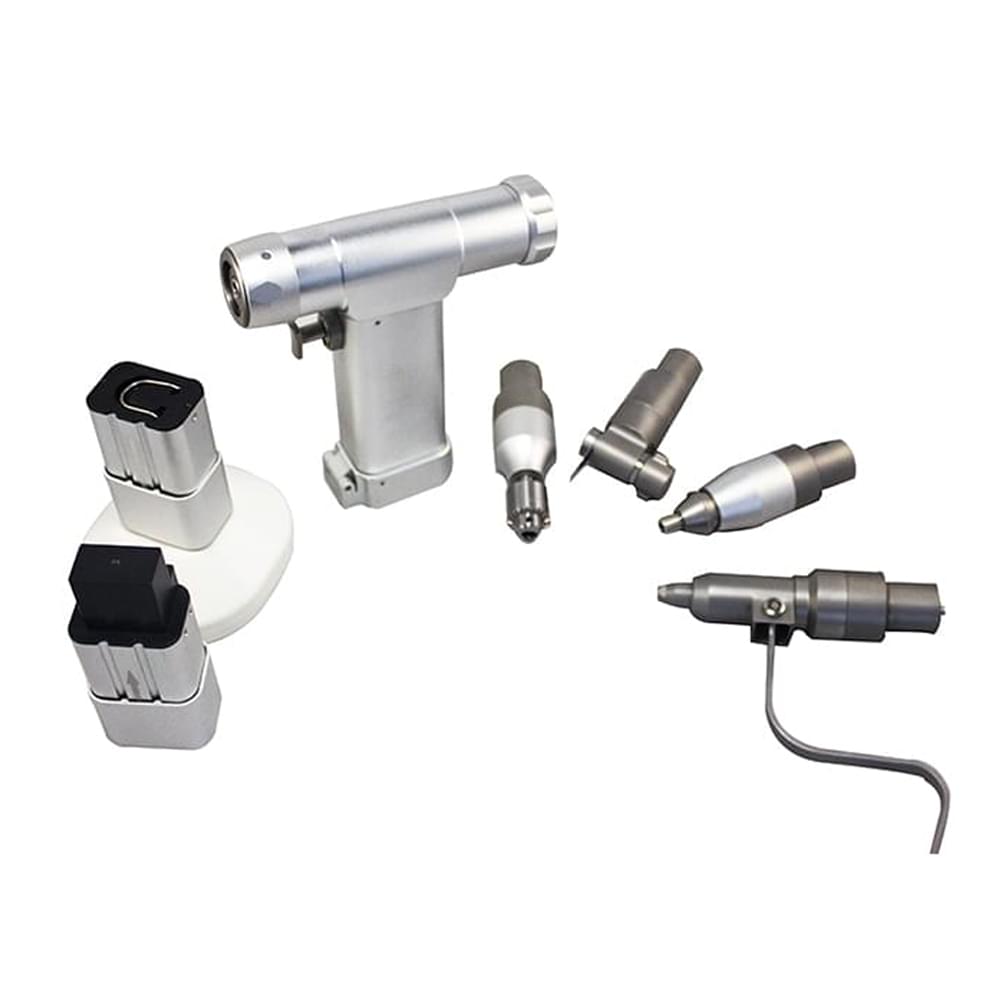

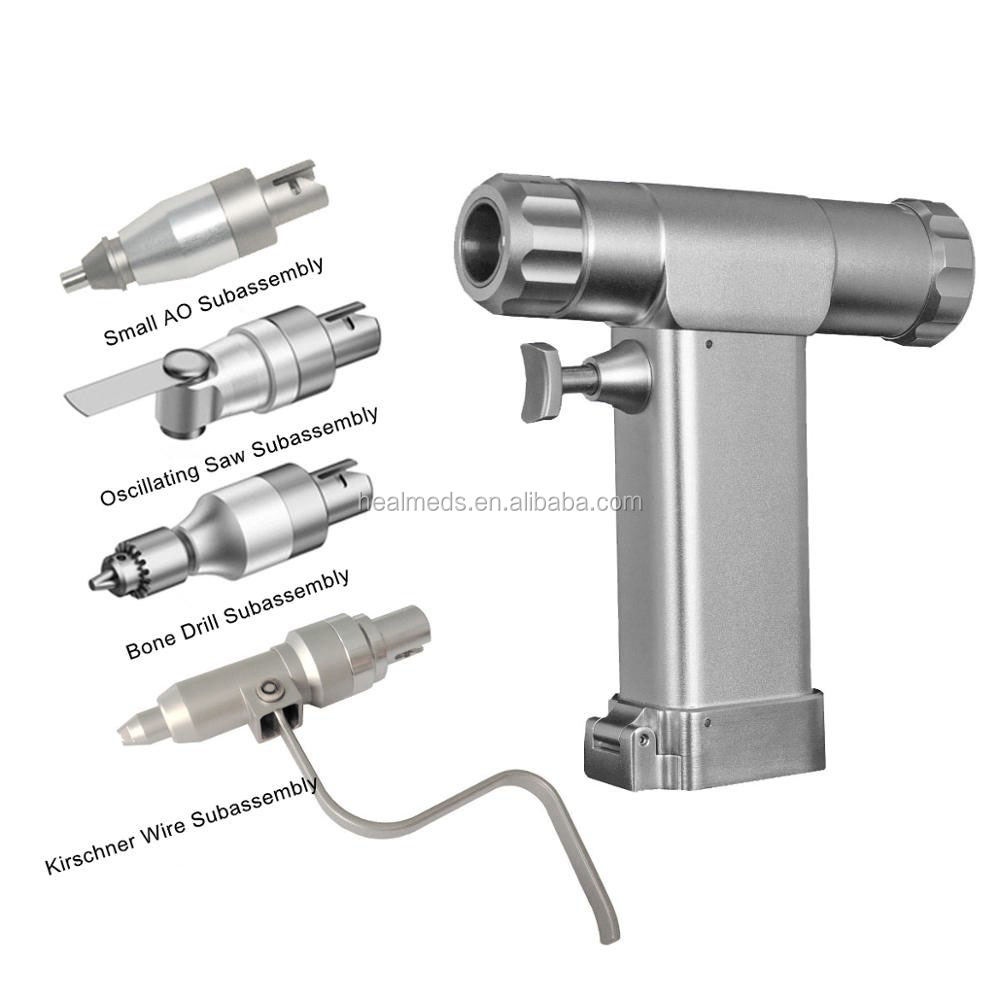

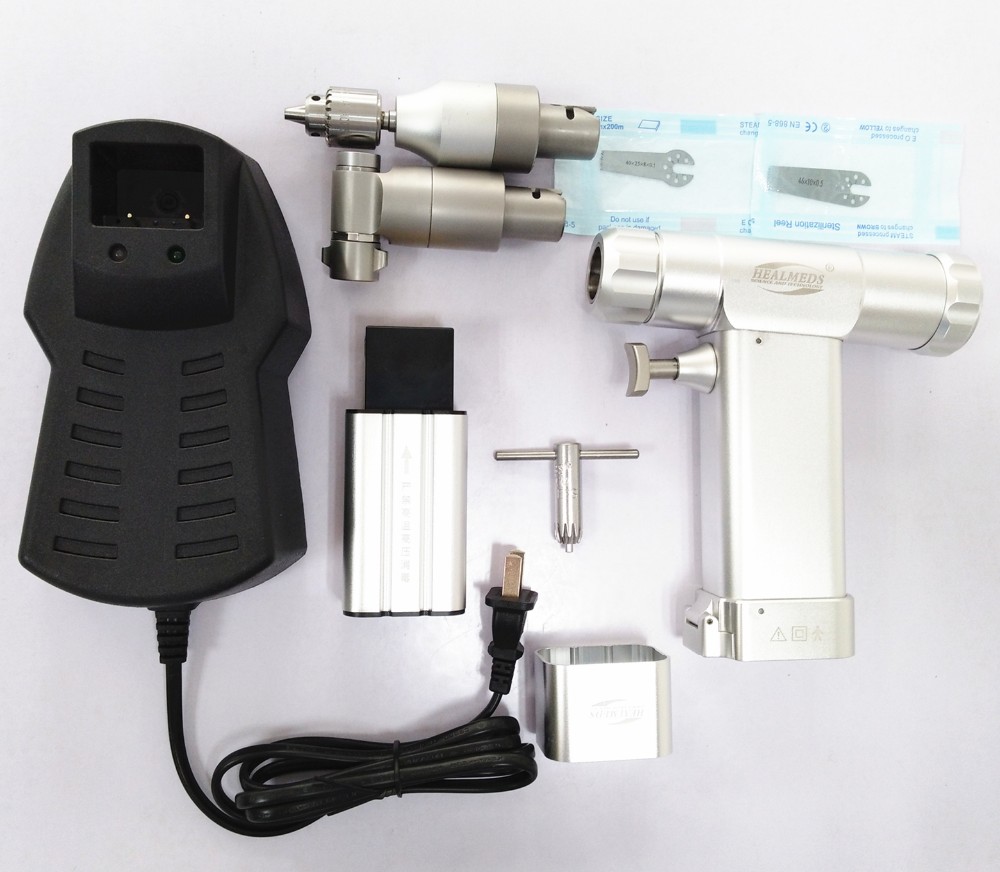

| No. | Accessory | Qty. | Note |
|---|---|---|---|

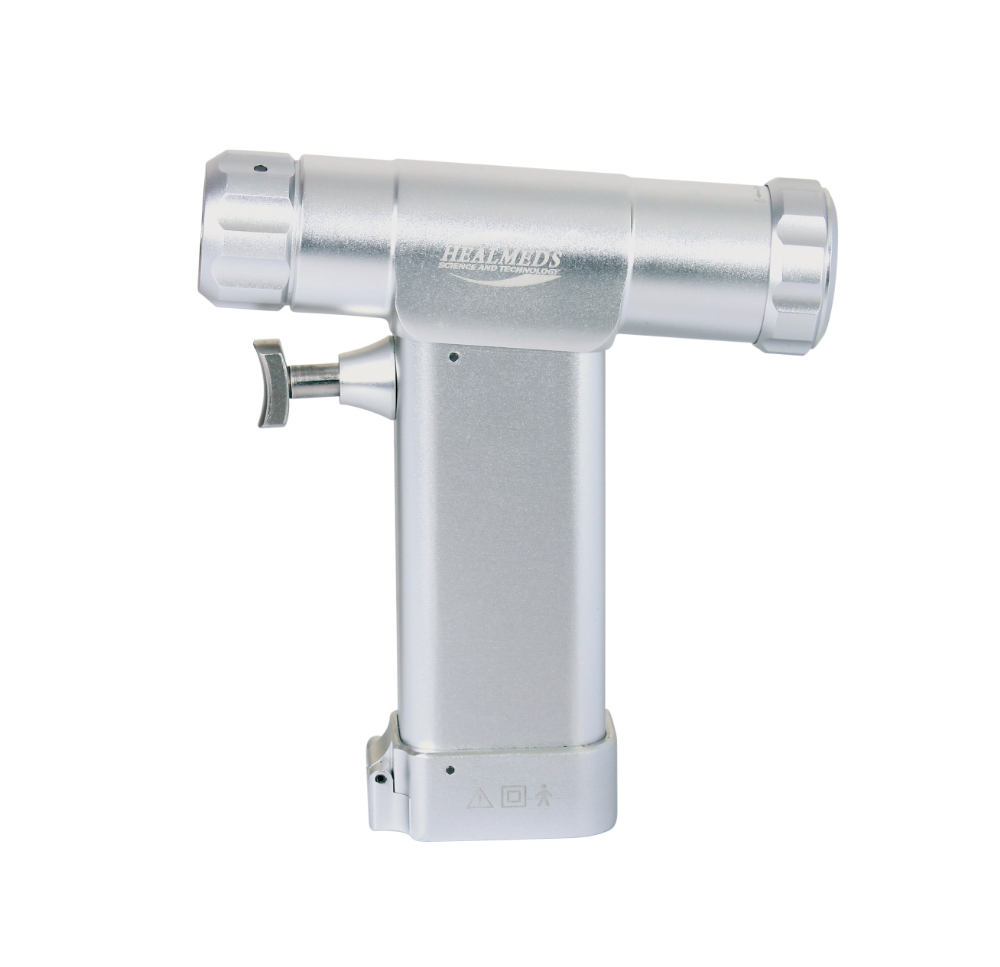

| 1 | Handpiece | 1 | 1.02kg, can be connected with several adapters, autoclavable up to 135°C |

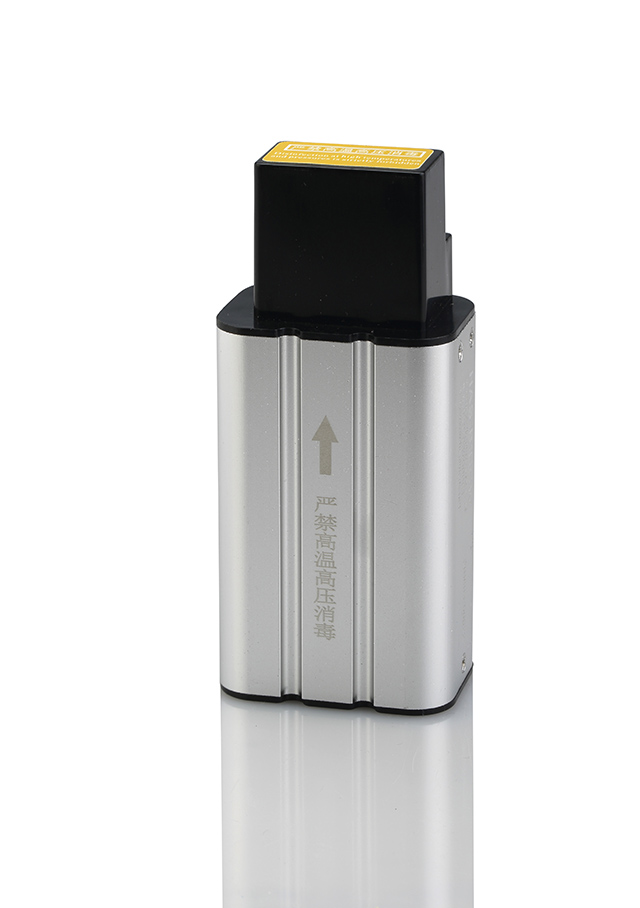

| 2 | Battery | 2 | Could not be sterilized, could last for 30 minutes after fully charged |
| 3 | Charger | 1 | 110-220V, match both European & American type |

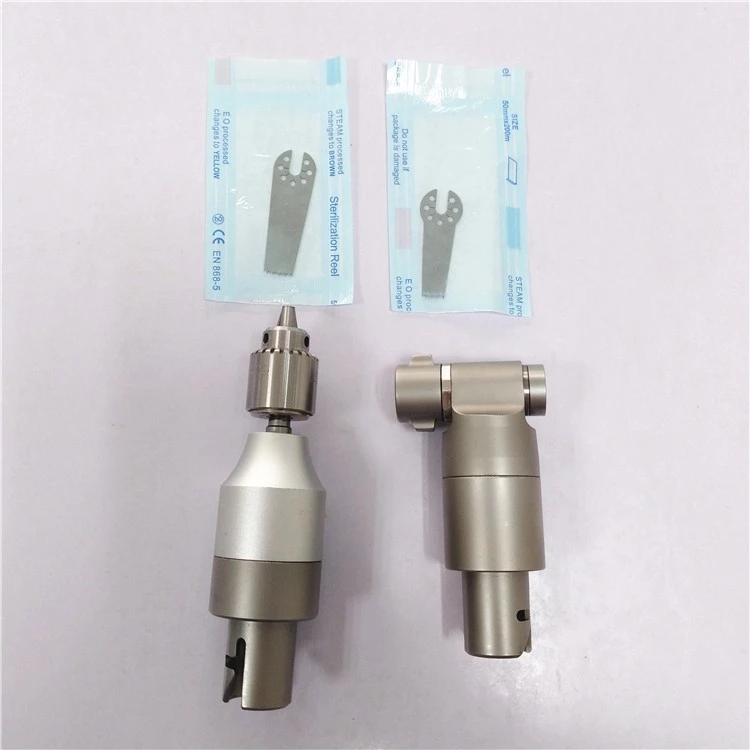

| 4 | Drill chuck | 1 | Imported, high Coaxiality, suitable for trauma surgeries |
| 5 | Oscillating Saw | 1 | Used for joint surgeries |
| 6 | Blade | 2 | 7 stars blades with optional sizes |

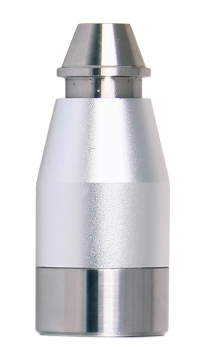

| 7 | Small AO | 1 | Trauma surgery for AO Type, for drilling holes and fixing the plates |
| 8 | K-Wire | 1 | Holding K-wire very conveniently |
| 9 | Sterilizing channel | 1 | Could be sterilized |
| 10 | Aluminum case | 1 | 445*270*150mm, Weight: 6kg |
The handpiece and attachments can handle sterilization temperatures up to 135 °C (with improved variants handling up to 155 °C). Going beyond this limit can damage the internal motor. Please note that the battery is not autoclavable and should never be sterilized.
A fully charged battery provides approximately 30 minutes of continuous operation. The standard kit package comes with 2 batteries, allowing you to cycle them during longer surgical procedures.
The standard bone drill attachment is compatible with drill bits that have a diameter of less than 6mm. The chuck gripper diameter itself accommodates bits up to 4mm.
It is crucial to remove the battery from the handpiece immediately after completing a surgery. Keeping the battery inside the tool causes a small, constant automatic discharge that will shorten the overall life of the battery cell.
We offer a 1-year warranty for the whole machine, a 2-year warranty specifically covering the motor, and a 3-month warranty for the batteries and fast-consumption items.
The cranial bur blade is made of flexible medical stainless steel to prevent breaking during surgery. Because it is flexible, it wears down quickly. For the safety and efficacy of the surgery, we strongly suggest using each blade for one surgery only.
