Linvetac / Hall / Conmed Battery System Medical Orthopedic Drill Set Multifunction Drill and Saw

Product Description

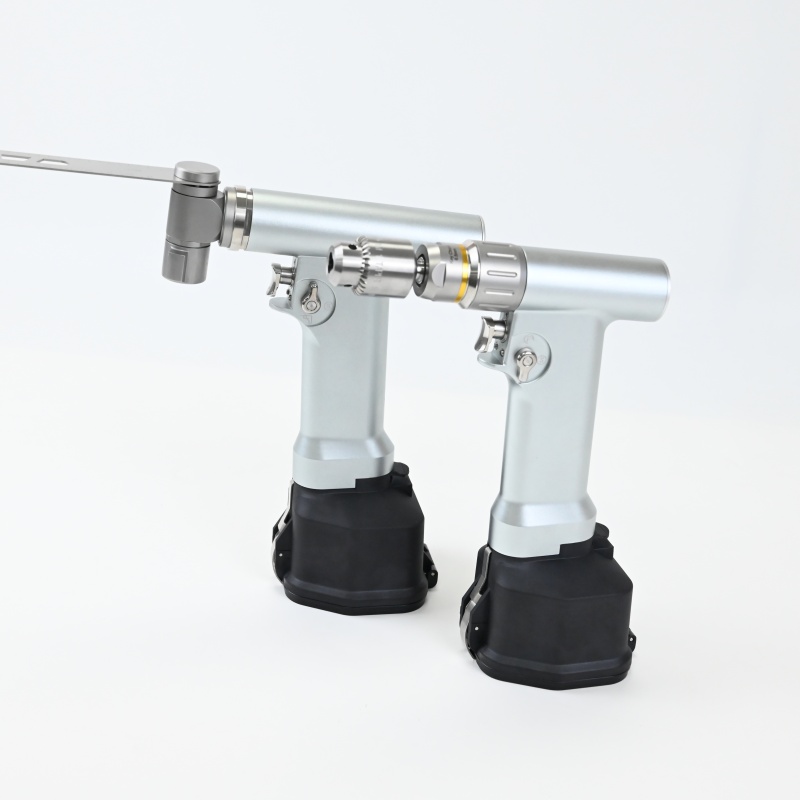

E100 Multifunction Drill

Mini Multi Function Bone Drill Machine

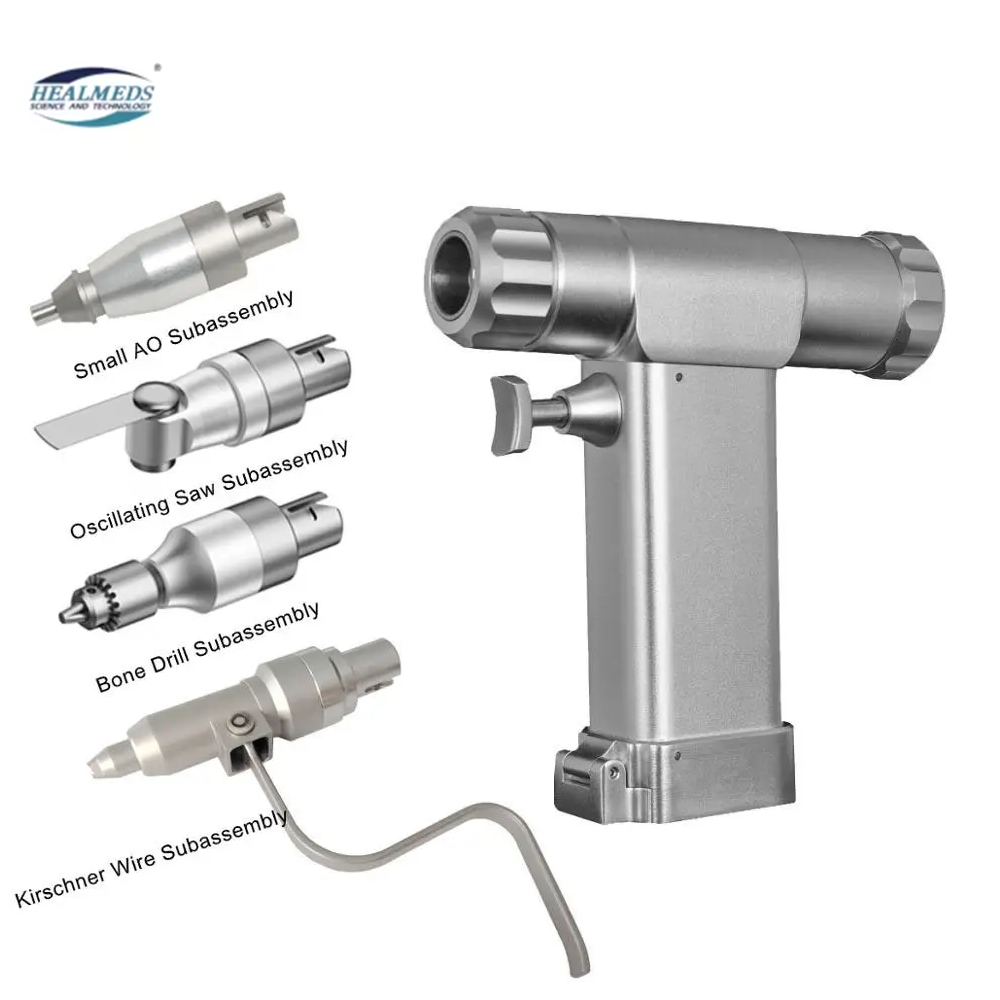

Based on the Conmed, our E100 Bone Saw includes a wide range of heavy-duty drills and saws. The battery and performance are the same as the Conmed, with dual-speed control for multiple cutting options. The reciprocating saw is compact and has excellent ergonomics. It cuts faster and harder. The rotating handle allows for high-speed drilling and high-torque reaming. It utilizes innovative motor technology to provide less vibration and better handle control. There are single and dual trigger options as well as reaming and drilling attachments. It also comes with a modular sterilization container and batteries.

Features
E100 Multifunction Drill Features
  • Speed Range (Key Chuck Attachment): 0-1200rpm
  • Torque (Key Chuck Attachment): 3.5N-m
  • Speed Range (Reaming Attachment): 0-400rpm
  • Torque (Reaming Attachment): 10N-m
  • All copper thick wall chuck, very durable, high concentricity, stable speed, spindle clamping, easy and quick to change drill bits.
  • Tail power switch design, smooth operation, beautiful and does not affect the use.
  • Micro motor, full copper core wire movement, low noise, high power, high stability, easy to store.
  • Frosted texture process on the surface of the body, effectively prevent slippage, comfortable to hold, not tired of long time use.
Details

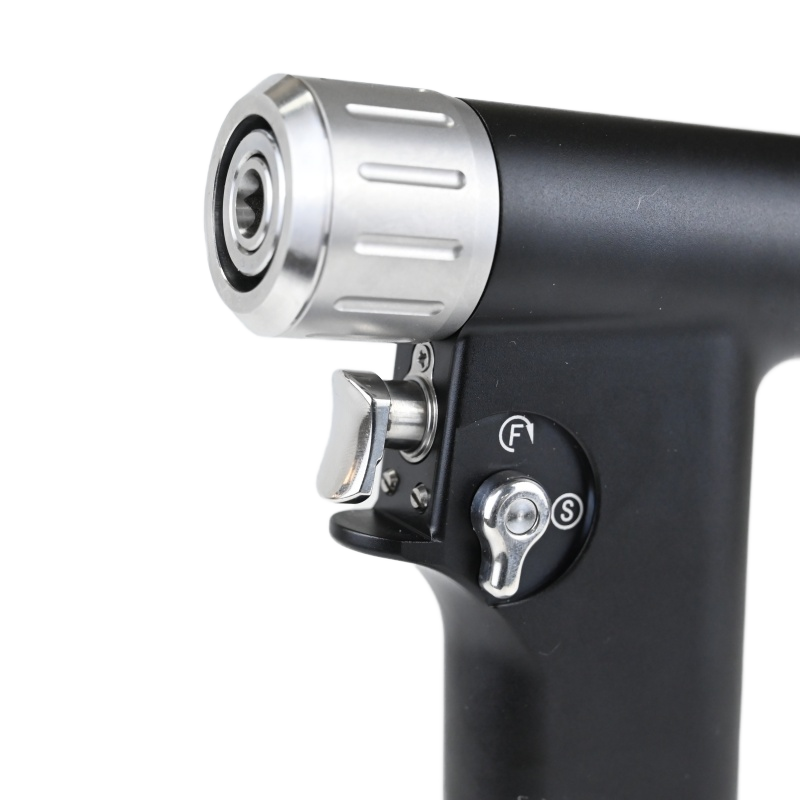

E100 Drill Details View 1
E100 Drill Details View 2
E100 Drill Details View 3
E100 Drill Details View 4
Specification
Item Value
Multi-Function Handpiece Equipped with brushless DC cannulated motor imported from USA

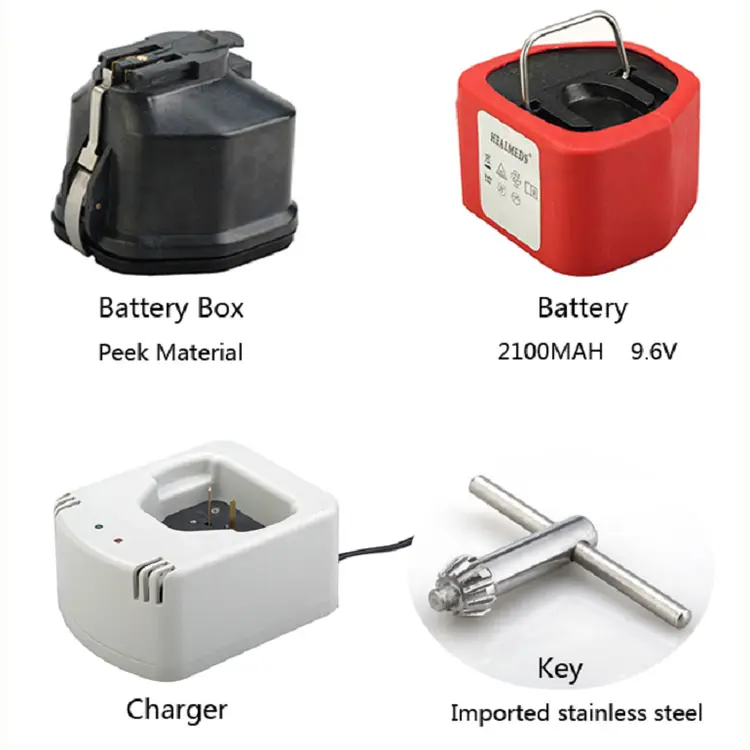

Battery Ni-MH with longer service-life, High capacity: 2100MAH, Voltage: 9.6V

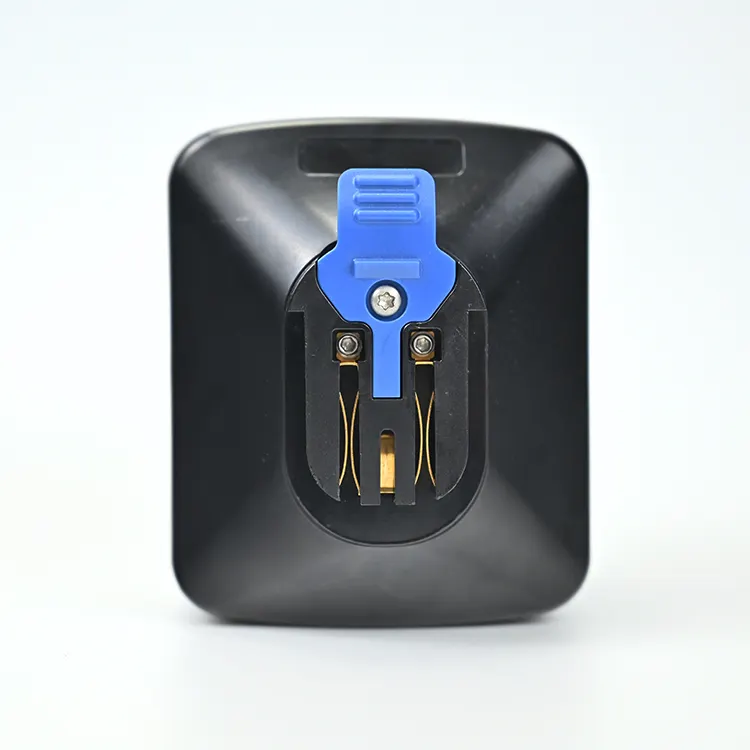

Battery Box Peek material: sterilized more than 3000 times
Charger More convenient design to guarantee the battery life
Transfer Shield Imported stainless steel 304
Key Chuck Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment Speed Range 0-400rpm, Torque 10NM
K-wire Attachment 0.7-1.6mm / 1.6-4.0mm
Reciprocating Saw Frequency: 0-12000cpm
Sterilizing Box 445*275*215mm, 4.6Kg
Payment & Delivery
Payment and Delivery Information
Our Advantages
Advantage 1
Advantage 2
Advantage 3
Advantage 4
FAQ
FAQ Visual Reference
What are the primary applications of the E100 Multifunction Drill?
The E100 is designed for various orthopaedic surgical procedures, featuring high-speed drilling and high-torque reaming capabilities suitable for diverse bone cutting and preparation tasks.
What type of motor powers the handpiece?
It is equipped with a high-performance brushless DC cannulated motor imported from the USA, which ensures high power stability, low noise, and minimal vibration during operation.
How durable is the battery and its box?
The system utilizes a 2100MAH Ni-MH battery. The battery box is made of highly durable PEEK material, capable of undergoing sterilization processes more than 3,000 times.
What are the speed ranges for the key chuck and reaming attachments?
The Key Chuck attachment offers a speed range of 0-1200rpm with a torque of 3.5N-m, while the Reaming attachment provides a speed range of 0-400rpm with a torque of 10N-m.
Does the E100 system support autoclavable sterilization?
Yes, the kit includes a modular sterilization box (445*275*215mm) designed to accommodate all handpieces and attachments for safe autoclaving.
What is the performance output of the reciprocating saw?
The reciprocating saw has a frequency range of 0-12000cpm, allowing for quick, precise cutting with excellent ergonomic control.
