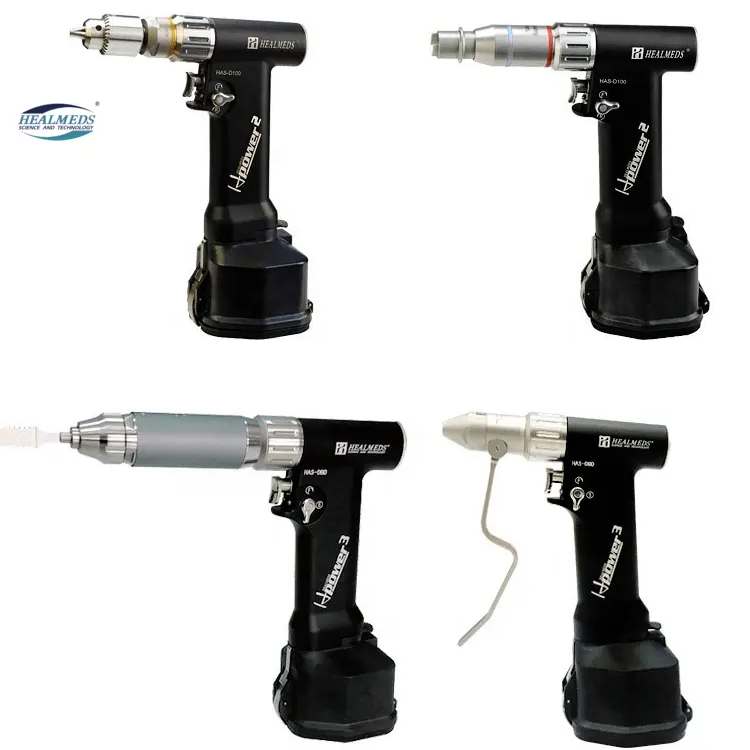

Conmed Stryker Medical Orthopedic Drilling Electric Orthopedic Drill for Orthopaedic Power Tools

Product Description

E100 Multifunction Drill Mini Multi Function Bone Drill Machine
E100 Multifunction Drill

Features

Speed Range (Key Chuck Attachment): 0-1200rpm
Torque (Key Chuck Attachment): 3.5N-m
Speed Range (Reaming Attachment): 0-400rpm
Torque (Reaming Attachment): 10N-m

All copper thick wall chuck, very durable, high concentricity, stable speed, spindle clamping, easy and quick to change drill bits. Tail power switch design, smooth operation, beautiful and does not affect the use. Micro motor, full copper core wire movement, low noise, high power, high stability, easy to store. Frosted texture process on the surface of the body, effectively prevent slippage, comfortable to hold, not tired of long time use.

Details

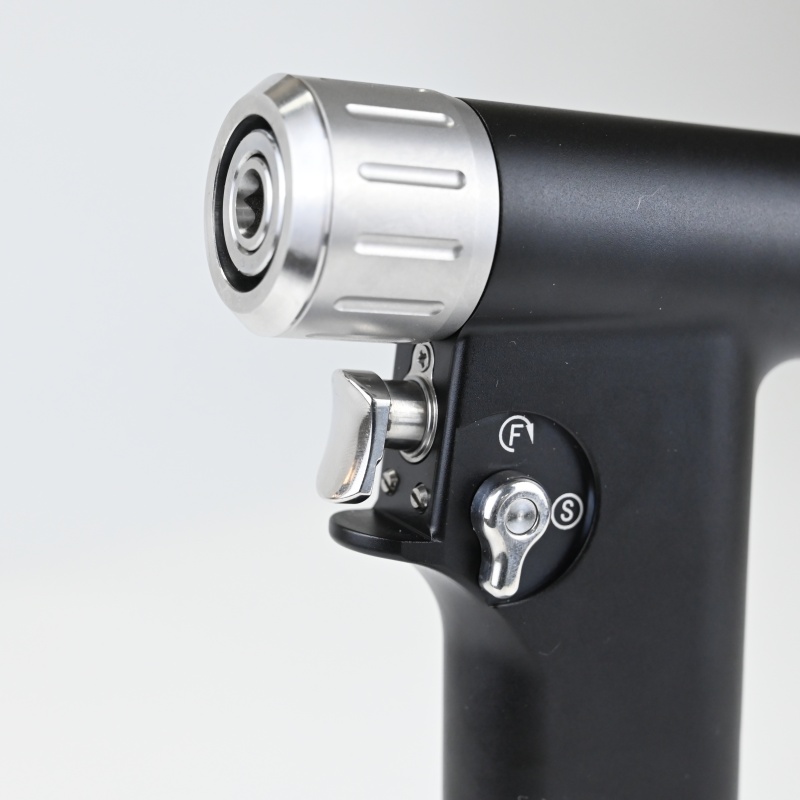

Details View 1
Details View 2 Details View 3
Detailed Dimensions

Specification

Item Value

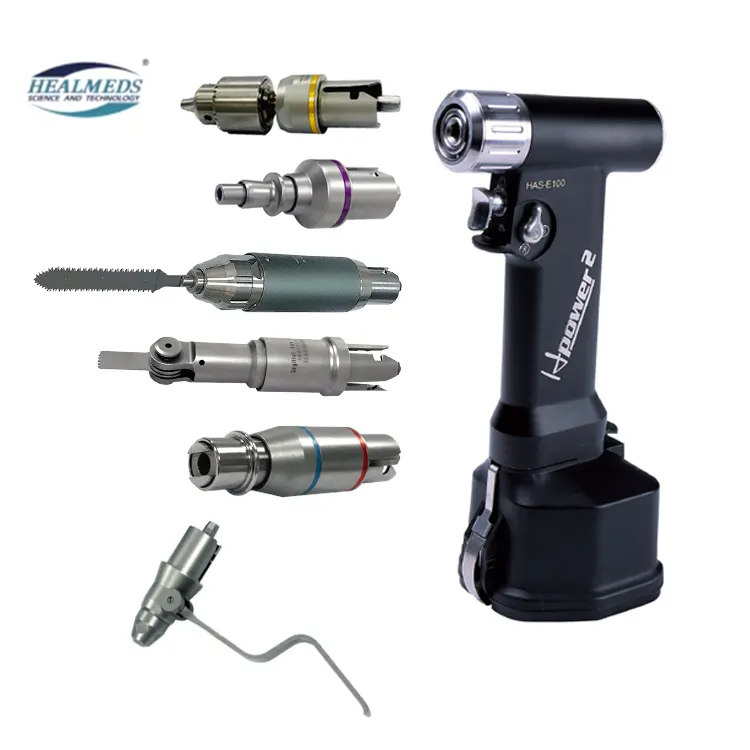

Multi-Function Handpiece Equipped with brushless DC canulated motor imported from USA

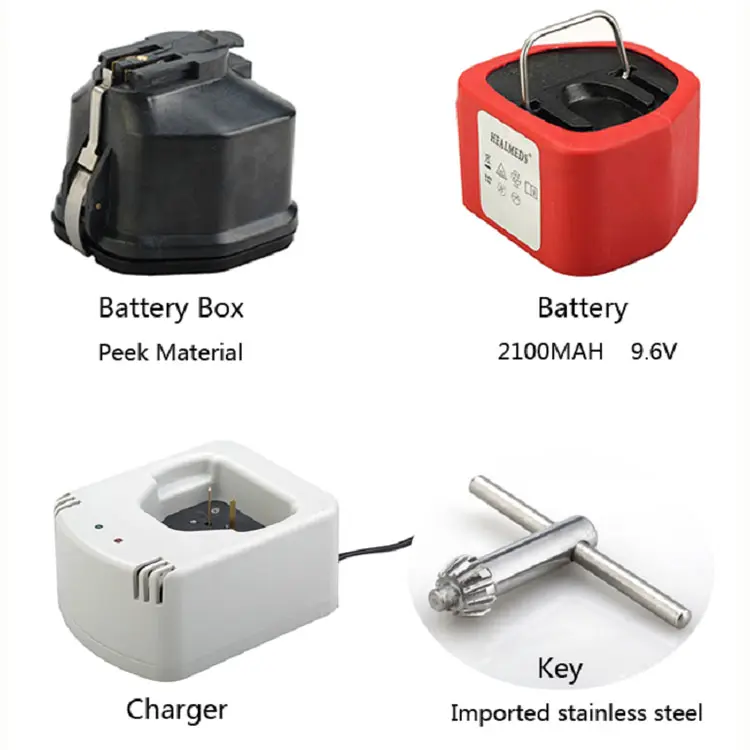

Battery Ni-MH with Longer service-life, High capacity: 2100MAH Voltage: 9.6V
Battery Box Peek material: sterilized more than 3000 times
Charger More convenient design to guarantee the battery life
Transfer Shield Imported stainless steel 304
Key Chuck Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment Speed Range 0-400rpm, Torque 10NM
K-wire Attachment 0.7-1.6mm/1.6-4.0mm

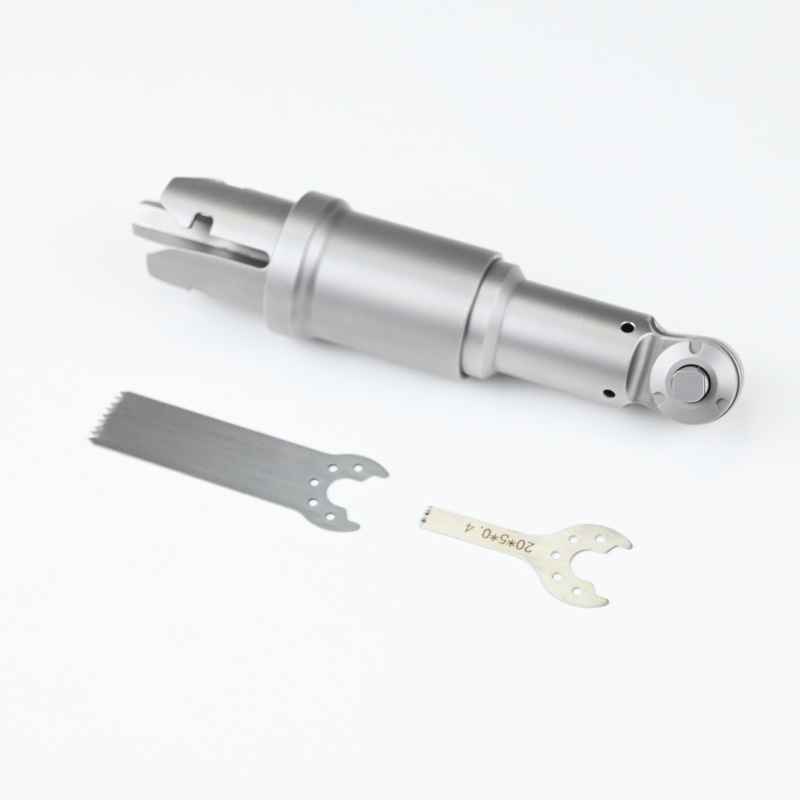

Reciprocating Saw Frequency: 0-12000cpm
Sterilizing box 445*275*215mm, 4.6Kg

Payment & Delivery

Payment & Delivery Methods

Our Advantages

Advantage 1 Advantage 2 Advantage 3 Advantage 4

Product Overview

Overview

Frequently Asked Questions

What type of motor is used in the E100 Multifunction Handpiece?
The handpiece is equipped with a high-quality brushless DC cannulated motor imported from the USA, designed for high stability, low noise, and high power output.
How durable is the battery box and can it be sterilized?
The battery box is constructed from high-grade Peek material, which allows it to be sterilized more than 3000 times without compromising integrity.
What are the speed and torque values for the Key Chuck and Reaming attachments?
The Key Chuck attachment supports a speed range of 0-1200rpm with a torque of 3.5NM. The Reaming attachment supports a speed range of 0-400rpm with a torque of 10NM.
What K-wire sizes are compatible with the K-wire attachment?
The K-wire attachment accommodates wire sizes from 0.7mm to 1.6mm and 1.6mm to 4.0mm.
What battery specifications does the E100 feature?
It utilizes a Ni-MH battery designed for longer service life, boasting a high capacity of 2100MAH and a voltage of 9.6V.
What are the dimensions and weight of the sterilization box?
The sterilization box measures 445mm * 275mm * 215mm and has a weight of 4.6Kg.
