Product Description

E100 Multifunctional Drill Saw System Medical Electric Orthopedic Drill for Orthopaedic Power Tools

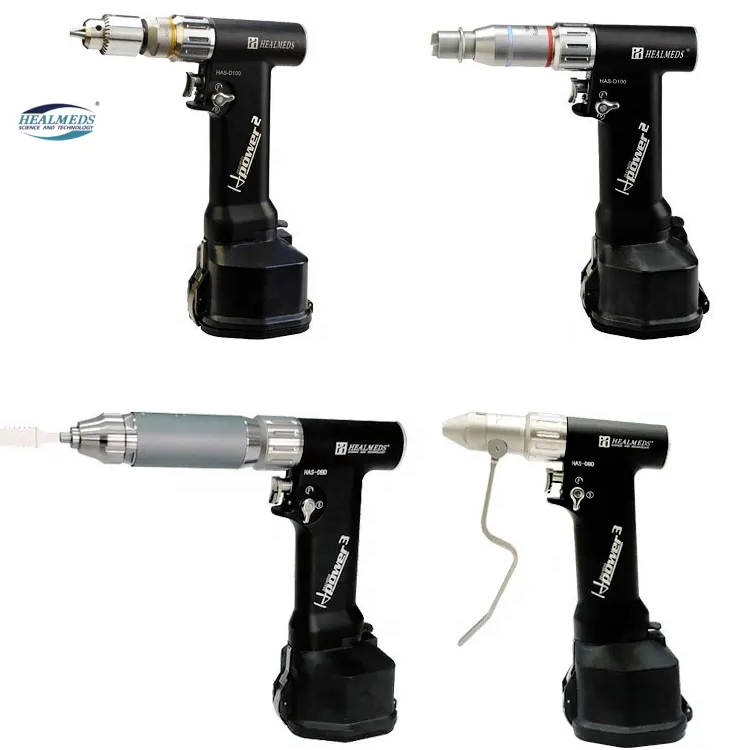

E100 Multifunctional Drill Saw System
Features:
Key Chuck Attachment:
Speed Range: 0-1200rpm | Torque: 3.5N-m
Reaming Attachment:
Speed Range: 0-400rpm | Torque: 10N-m
  • Exceptional maneuverability and control
  • Minimized chance of sterility breaks
  • Proven durability with extensive trials to ensure reliability and integrity in a wide variety of potential scenarios
Details
System details main view
Attachment detail view 1 Attachment detail view 2
Accessory component setup
Specification
Item Value

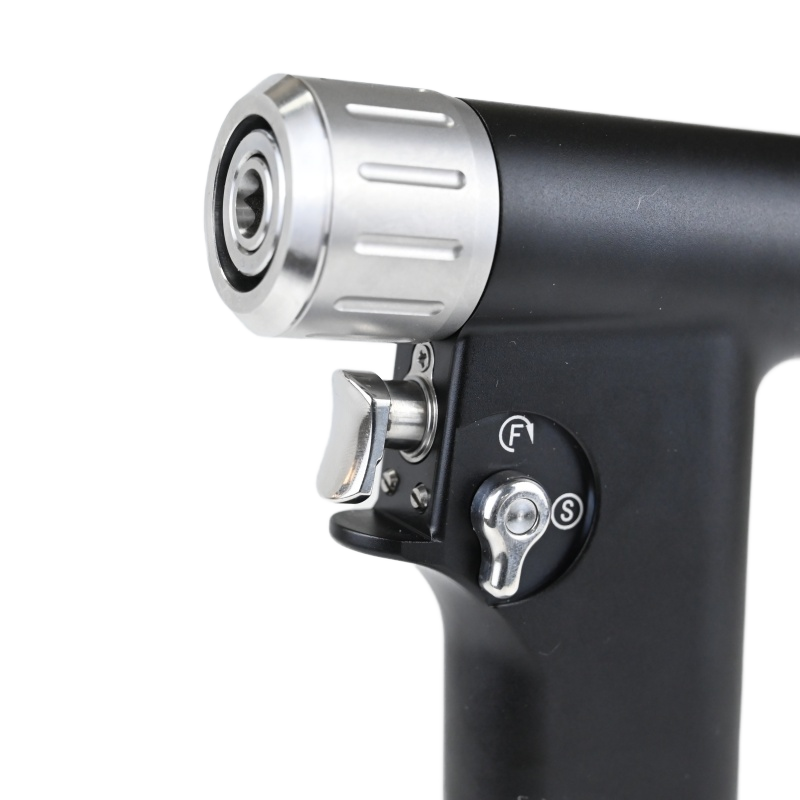

Multi-Function Handpiece Equipped with brushless DC cannulated motor imported from USA

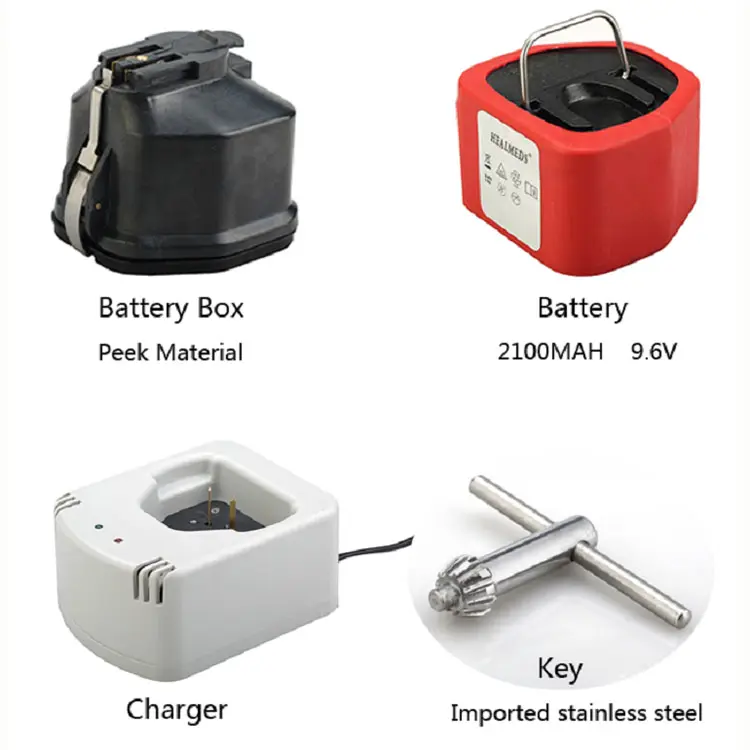

Battery Ni-MH with Longer service-life, High capacity: 2100MAH, Voltage: 9.6V

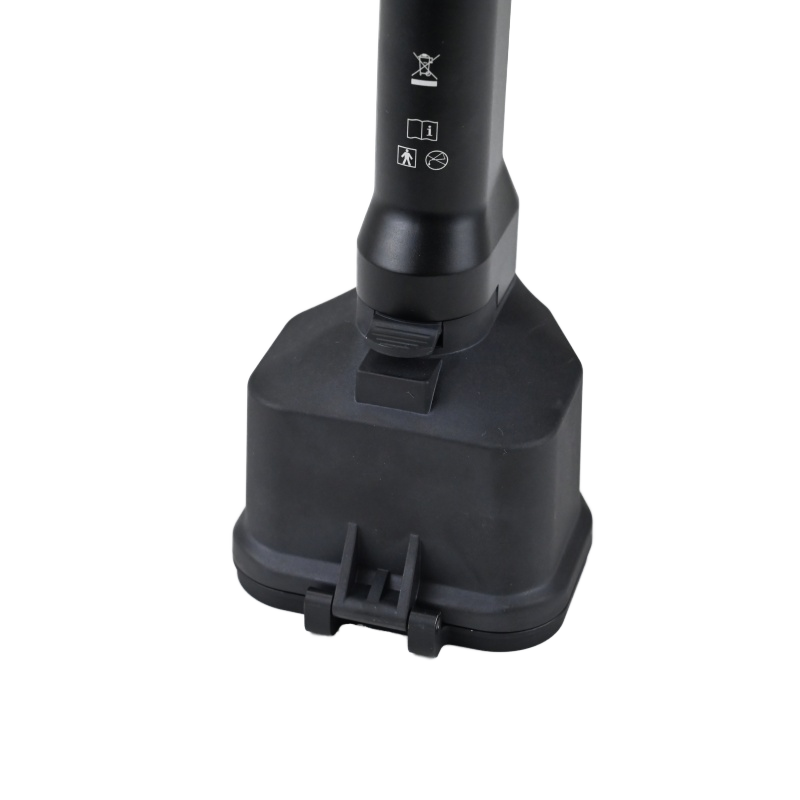

Battery Box Peek material: sterilized more than 3000 times

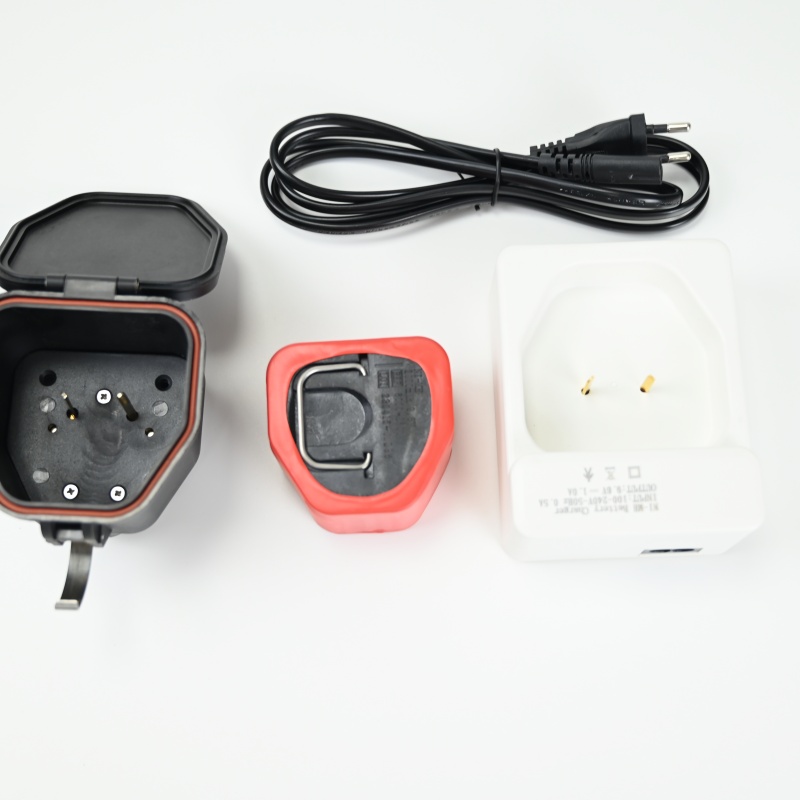

Charger More convenient design to guarantee the battery life
Transfer Shield Imported stainless steel 304
Key Chuck Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment Speed Range 0-400rpm, Torque 10NM
K-wire Attachment 0.7-1.6mm / 1.6-4.0mm
Reciprocating Saw Frequency: 0-12000cpm
Sterilizing box 445*275*215mm, 4.6Kg
Payment & Delivery
Payment options and delivery systems
Our Advantages
Production facility and testing Precision machining advantages
Material quality verification Safety and certification testings
FAQ
Frequently Asked Questions Overview
What are the key technical specifications of the E100 handpiece motor?
The multi-function handpiece is equipped with a high-performance brushless DC cannulated motor imported from the USA, ensuring reliability, low noise, and stable output during orthopedic surgeries.
How many times can the battery box be autoclaved?
The battery box is constructed from advanced PEEK material, allowing it to withstand high-temperature sterilization and be autoclaved more than 3000 times.
What is the difference in speed and torque between Key Chuck and Reaming Attachments?
The Key Chuck Attachment operates at a higher speed range of 0-1200rpm with 3.5N-m of torque, whereas the Reaming Attachment provides a lower speed range of 0-400rpm paired with a higher torque of 10N-m to meet high-force requirements.
What kind of battery technology does this system utilize?
The system features a long-service-life Ni-MH battery with a high capacity of 2100mAh and a voltage of 9.6V, designed specifically to guarantee optimal run times during operation.
What are the specifications of the reciprocating saw attachment?
The reciprocating saw attachment runs at an operating frequency range of 0-12000cpm, delivering efficient cutting action for orthopedic bone-cutting tasks.
